Three phase solid state relay/ssr/contactor 15A 3-pole

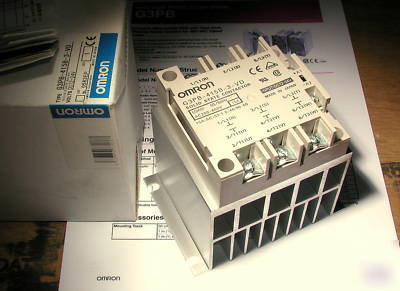

Omron Solid State Relay Module.
Model no: OMRON G3PB-415B-3-VD
Load: 3-Phase* 15amp [AC-51 rating] [load votage range 200...400V 50/60Hz]
[*ALL THREE poles are switched.]
WARNING: Maximum supply voltage 400V. Cannot be used on 440V 3ph systems - I should have the 480vac max version listed.
Control input range: 12 to 24Vdc
Prefitted with compact vented alumium heatsink for panel mounting. [Heatsink features four "screw-mounting" slots]
Connections: 6 load terminals and 2 input terminals. All screw clamp terminals
Other features: Zero-cross switching. [This zero cross-firing feature eliminates problems of transmitted RFI/EMI] Operation indicator led.
For full specification including module dimensions please view the pdf datasheet: http://www.ia.omron.com/data_pdf/data_sheet/g3pb-2_-3_dsheet_csm170.pdf
Module is NEW and BOXED with full instruction and installation sheet.
Basic Installation Guidelines: The module will need to be mounted in an enclosure where there cannot be accidental contact with the exposed high-voltage terminals. This unit does NOT come with the clip-on terminal cover shown in the pdf.
Thermal management is critical. The module relies on convection of cool air through the heatsink for cooling. The unit will need to be mounted in an enclosure with good ventilation for cooling purposes. It is usually good practice to mount solid state switching equipment in a fan cooled enclosure. [I can supply quality equipment fans cheaply if required].
As the Omron Leaflet states: "Must need an air convection for SSR or the heatsink. Less convection air produces a heating on SSR abnormal and causes a short circuit and burning."
