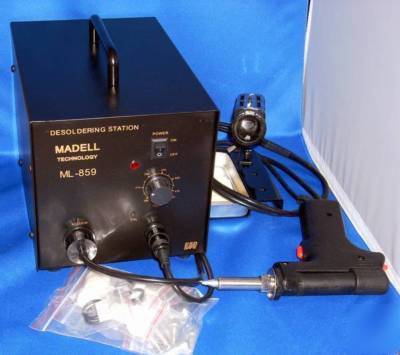

Smt smd madell desoldering station ml-859
This is a Temp-Controlled desoldering station, which is composed of: air pump part, heating part, transfer part and control part. Air pump part includes diaphragm pump and high power exectromotor. Heating part includes ceramic heater (temperature sensor) and soldering tip. Transfer part is made up of the gun, vacuum pipette and filter gauze. Control part is control PCB. While working, the electromoter drives air pump and make negative pressure to imbibe melted soldering tin into filter pipe, thereby it gets the goal of cleaning out soldering tin on the circuit board.
* Anti-static design. to prevent from break caused by static and creepage.
* Powerful build-in vacuum pump, needn't connect other vacuum system, convenient to put and use.
* Heating system is adopted sensor that is closed loop temperature control to ensure precision & constant temperature.
* Transformer makes the power from main power supply into 26V AC low voltage for heating element, good for safety in work.
* High quality Hot-Resistant soft vacuum tube, to avoid damage by hot soldering iron.
* Electromotor of vacuum pump is fit on temperature safety resistance, prevent it from damage due to long time workig.
60W / 27 +- 10% V AC 50Hz/60Hz
Temp. of Desoldering tip
* 1 connecting wire of power supply
* 1 holder for desoldering gun
* 4 nozzles: A1002, A1003, A1006, A1007
* 5 gauze of filtration ML-M1001
* 5 gauze of filtration ML-M1002
* 2 spring filtration tube
* 1 closed connector of filter
* 4 closed ring of filtration tube
* 2 closed ring of vacuum stand
