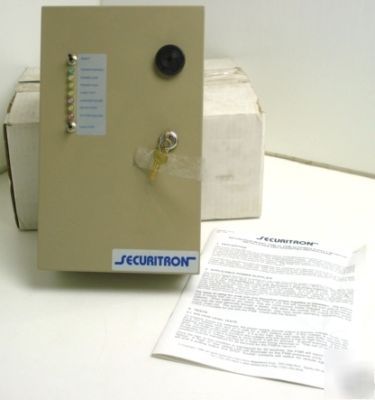

New securitron psm-24 power supply monitor
The PSM Series Power Supply Monitor is designed for use with larger DC power supplies. It can work well with all BPS supplies with capacities of 2 Amps or more, and works as a power supply alarm system, supervising all key functions and reporting any trouble which occurs. The output voltage is monitored to ensure it stays within tight limits for proper float charging of the battery pack.
* Sold for both 12 and 24 VDC systems
* Supervises the power supply systems output voltage
* Has audio and visual alarms
* Load automatically tests the battery pack every 8 hours
* Monitors/tests DC output of power supply load
* Recommended Power Supplies:
PSM-12: 3 Amp or greater at 12VDC (BPS-12-3, BPS-12-4.5, BPS-12-6, BPS-12-9, BPS-12-15)
PSM-24: 2 Amp or greater at 24VDC (BPS-24-2, BPS-24-3, BPS-24-4, BPS-24-6, BPS-24-10)
* Voltage: VDC power from corresponding power supply
* Current Draw: 250mA at 12VDC, 200mA at 24VDC
* Warranty: MagnaCare Lifetime Replacement Warranty
