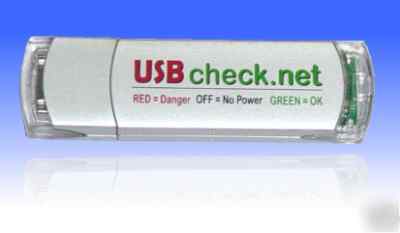

Usbcheck - usb port power tester
Don't risk it, Check it... with the USBcheck *
An indispensable tool for PC Technicians and Computer Users...
Compatible with future USB version 3.0
This device will quickly test the power wiring of USB Ports on your Computer and let you know the following conditions:
- Polarity is correct/reversed
- Helps detect intermittent power problems
These days most desktop computer cases have USB ports on the front/back or side for user convenience. The problem is that these are manually wired to the motherboard, when the system is assembled. These connections don t have a keyed connector to prevent wiring it incorrectly. This increases the chances for mistakes (especially when the connections are in hard to reach areas), mistakes that can become very expensive.
These connections are: | 5Volt | - Data | + Data | GND |
The worst case is when the positive (5V) and the Ground (GND) wires are reversed. This will kill the device, you plug in, instantly.
In some cases it could damage the motherboard.
If you are a technician you probably encountered systems with this problem and ended up damaging a USB device?
Don t put your USB devices at risk!
Before you plug-in your USB equipment, always use the USBcheck...
Very useful if you use any of these devices:
Flash Drive/Memory Stick, External Hard drive, Digital Camera, Video Camera, MP3/MP4 Player, Printer, Scanner, USB gadgets, etc.
PC technicians / IT Personnel:
Use it before you plug-in any USB devices, in your office/shop or for on-site repairs.
Learning Computer Repair? Check your work before using your USB devices.
Use it as part of your testing & quality control.
Test the USB ports of a newly purchased or repaired PC.
If you use your USB devices in Internet Caf s, Libraries, Schools or someone else s computer always check the USB port with the USBcheck
Just plug it in a USB port (with the computer turned ON)
- Red light - Warning polarity reversed (Do not use this port until the wiring is corrected)
- Green Light - Power Wiring OK
- Both Lights OFF - No Power (Check wiring / Motherboard)
Check for Intermittent power problems:
With the USBcheck connected to a powered USB port:
Gently wiggle the USBcheck device, from side to side and up and down motion, (If testing on a desktop case also wiggle the cables and the connector on the motherboard USB header). If the LED, at any time, flickers ON and OFF you have a bad power connection.
(NOTE: While performing this test do not apply too much force as it may cause damage to the solder joints holding the USB connector to the PCB board or the USBcheck device!!! )
Note: This device does not check the data communication of the USB port. First use the USBcheck* to test the power wiring. If you get the green light then plug-in a USB device or test equipment designed for that purpose (follow the manufacturer's instructions).
Any Operating System (Windows, Linux, Mac, Unix, etc)
Includes hole for installation of Lanyard
Just power-up the motherboard... Plug-n-Test!
Visit www.USBcheck.net for more information.
