> FS6-3/4 flow switch-high density series FS6

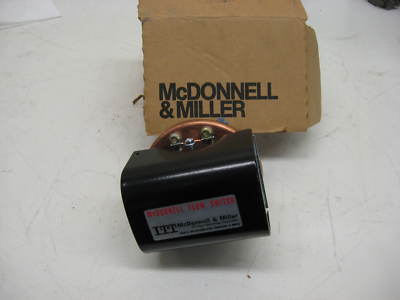

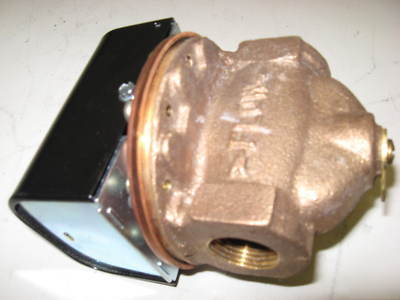

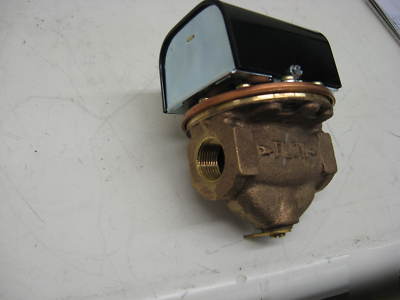

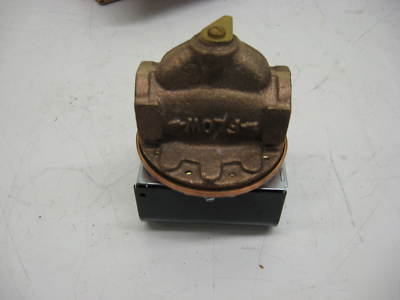

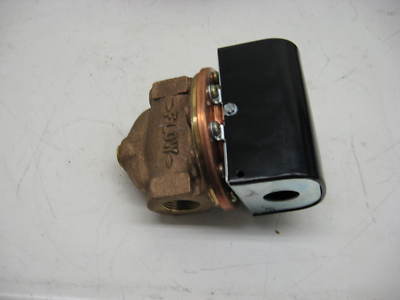

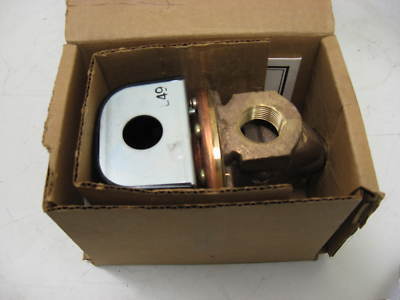

FS6-3/4 flow switch-high density series FS6
For heavy duty applications where high sensitivity is required, such as water treatment systems, cooling systems for electronic circuits, compressors, booster pumps, and bearings, and other applications that need instant switching
* In-line configuration eliminates need for a pipe tee
* Actuates at extremely low flow rate
* Sizes available: 3/4" NPT, 1" NPT
* Single pole, double throw snap switch
* Switch compartment is completely sealed to protect it from the liquid
* Sensitivity adjusting screw makes flow adjustment easy
* Minimum temperature (fluid or ambient) 32 Deg. F (0 Deg. C)
* Maximum temperature 225 Deg. F (107 Deg. C)
* Maximum operating pressure 100 psi (7 kg/cm2)
Flow rate describes the speed in which an amount of fluid can pass through.
Amperage, or amps, refers to the amount of electricity flowing through the wires.
Max PSI is the maximum amount of pressure per square inch that can be tolerated.
