Computer Interfaced DC Motor Controller
Brocott Professional Electronics
We are a UK Authorised importer & distributor of these German manufactured electronic modules. Practical Solutions for everyday needs, whether in the factory, on the road or at home. Modules can be integrated to function with existing systems.

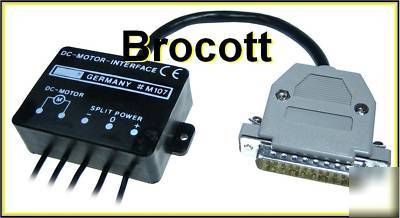

Computer Interface DC Motor Controller
For controlling a DC brush motor from 5...24VDC, max. 2A.
A double power pack (split power supply) is required for the current supply. For connection to a standard PC LPT port. The motor may either be controlled by hand with the computer keyboard (number of revolutions, running direction) or via a program with an automatic program flow which has been pre-written. The supplied software if fully programmable.
By means of an interface switch (M108) it is possible to operate up to 4 motors at the same time via individual interface modules respectively. Thus complex motions for various applications can be achieved.
* Operating voltage: 5...24VDC
* Switching current: max. 2A
* Dimensions: approx. 60 x 45 x 21 mm
