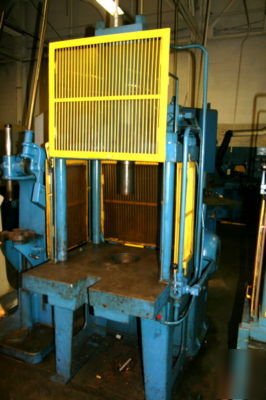

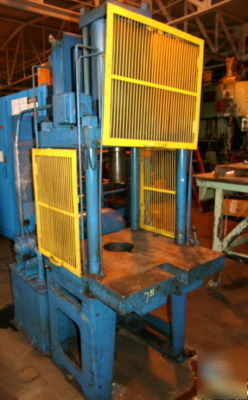

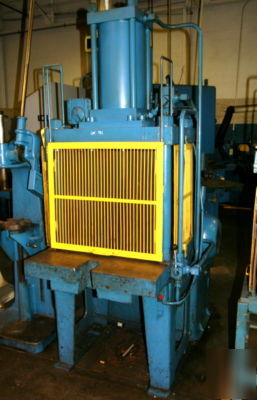

75 ton hydraulic hannifin press
CAPACITY: APPROX. 75 TON @2000 PSI
MAX. STROKE: 18"
MAX. DAYLIGHT: 24"
OVERALL BED AREA: 32" RL X 32" FB (W/8"DIA. HOLE)
DISTANCE BETWEEN POSTS: 25" RL X 15-1/2" FB
USEABLE BED AREA: 25" RL X 22" FB
POST SIZE: 3" DIA.
RAM SIZE: 4-1/4" DIA.
CYLINDER SIZE: 12" DIA. O.D.
DISTANCE FLOOR TO BED: 34"
HYDRAULICS: 10 HP, 1155 RPM, 220/440-3-60 MOTOR
VICKERS PUMP #V124-X-10 & TANK
APPROX. DIMENSIONS: 7'9" HIGH, 3-1/2' RL, 5-1/2' FB
APPROX. WEIGHT: 5,000 LBS.
*NOTE: PRESS USED TO PUSH OUT BUSHINGS OR WHEELS
-
**NOTE: THIS PRESS MAY INSPECTED UNDER POWER ON OUR FLOOR
