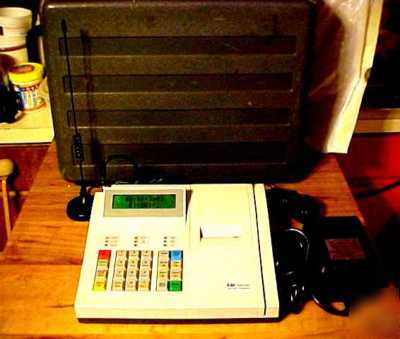

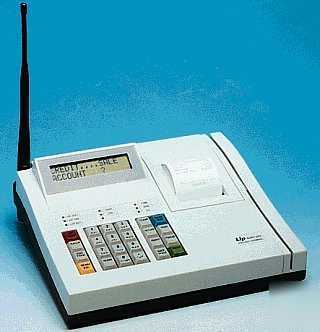

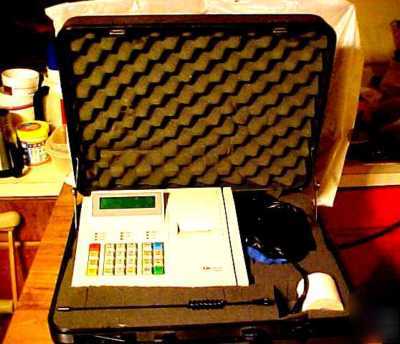

Lipman 2070 portable credit card terminal {compleat}
Dependable and independent operation is made possible by use of radio communications linked to a wireless mobile data network or via any standard telephone line.
The NURIT's powerful built-in rechargeable and replaceable battery pack can maintain reliable stand-alone operation in excess of 10 hours.
The easily accessible rear panel connectors allow for the use of a PIN pad or other general purpose RS-232 (serial) communication peripherals.
With the NURIT 2070, POS/EDC technology enters the 21st century !
Portable wireless operation. Can be taken and used anywhere within coverage area
Communication via built-in radio modem or regular telephone line
Split-dial operation with AMEX for authorization and settlement
Multi-host operational capability
Easily interconnects with a telephone, PIN pad, PC and other peripherals
Houses a built-in powerful rechargeable and replaceable battery pack for stand-alone operation exceeding 10 hours
Integrated impact printer provides fast and accurate receipts with choice of 1 or 2-ply paper
Automatic feeding system for built-in printer
Performs fast file transfer and downloading via cable and built-in 2400 baud modem
User-friendly operational menu system
Large memory capacity for detailed current and past (history) batch reports
Lipman's Center Management Program allows for control over multiple terminals and enables setting up terminal and third-party host parameters. In addition, this program allows for generating various status and service reports.
Certified by all major host processors. Additional certifications upon request.
Large 32-character LCD display
Full alphanumeric capabilities
Automatic paper feeder for printer
Magnetic stripe reader for tracks 1 and 2
Full header and trailer editing capability
Powerful 32-bit Motorola microprocessor, type EC68000
512 Kbyte flash memory for operating system application and parameters
256 to 512 Kbyte battery-backed RAM for user data. Two months minimum data retention.
Fully soft operating system for custom application reprogramming in C language
Complete and detailed hardware/software built-in tests
Reprogramming possible by downloading over phone
Operating system support for easy programming
User programming security and authorization access
Built-in radio for wireless communication
Dial-up modem @ 1200 or 2400 bps for telephone communication (CCITT V.22, V.22bis and BELL 212A)
One general purpose RS-232 port, up to 19200 baud
Impact dot matrix type; 24 character, 2.5 lines/sec.; 1 or 2-ply paper capability using normal or pressure sensitive 2.26" (57.5 mm) wide paper .
9.06" deep x 10.63" wide x 3.15" high (23 cm x 27 cm x 8 cm)
4.41 lbs (2 Kg) with built-in battery pack
Supplied AC/DC adapter (15 VDC/2.5A)
Built-in rechargeable/replaceable Ni-Cd battery pack
Operates from an external 12 VDC source or optional car lighter adapter
