25563650 | universal tool & cutter grinder

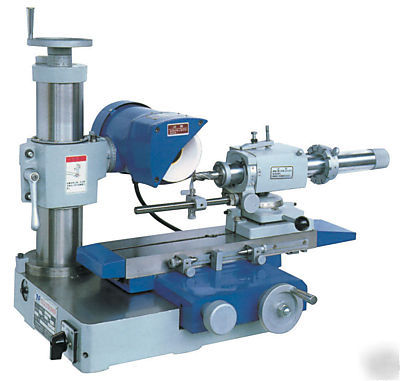

25563650 | Universal Tool & Cutter Grinder
* Work table is driven by steel rollers for smooth movement.
* Pneumatic axis seat is made of treated aluminum alloy, easy operation and high accuracy.
* Main spindle is able to up or down for 160mm.
* Driven by worm and gear, grinding wheel s swivel and angle are adjustable.
* Distance between center .. 10
* Working table area ... 5.2 x 18.5
* Swing over table .. . 8
* Cross travel of saddle ... 6.3
* Vertical adjustment of wheel .. . 7.5
* Swivel adjustment of column .. 360
* Vertical tilting range wheel head .... 360
* Flaring cup wheel .. . 5 x 1-3/4 x 1-1/4
* Speed of wheel . 3,450 RPM
* Motor .. . 1/3 HP, 110/240V, 1
* Weight 275 lbs.
* 7Pc. 5C collet set 3/16, 3/8, , 5/8, , 7/8 & 1 .
The manufacturer is Frejoth International
The manufacturers item number is CT-610
