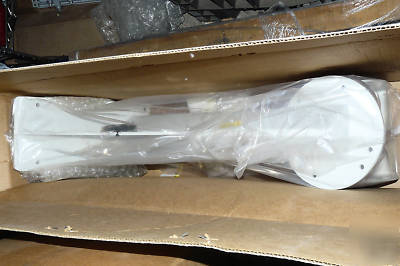

New pelco WM3026 heavy duty wall mount / tilt enclosure
Maximum Load 300 Pounds (136.08 kg)
For Use with Heavy Duty Pan/Tilts and Enclosures
Built-in Gusset Provides Added Support and Ample Space for
Two 3/4-Inch NPT Threaded Holes on Side of Mount Arm
Accommodate Flexible Metal Conduit Connectors
Adjustable Head Easily Removed for Use with Heavy Duty Pan/Tilt
The WM3026 wall mount has been designed specifically for use with Pelco s heavy duty pan/tilts and/or enclosures. Manufactured from 0.25-inch (6.35 mm) aluminum, the WM3026 is capable of supporting a maximum load of 300 pounds (136.08 kg) and can be safely mounted to any vertical load-bearing surface.
The WM3026 includes an adjustable mounting head, built-in pan/tilt adapter and gusset for added support. This flexible design allows you to simply remove the adjustable head for heavy duty pan/tilt applications no special mounting adapters are required. In addition, the gusset can be utilized for mounting a standard receiver in close proximity to the camera, enclosure, and/or pan/tilt.
In addition, the two 3/4-inch NPT threaded holes on the sides of the mount arm will accommodate flexible metal conduit in applications where cabling must be installed externally to the mounting surface
WM3026 Extra heavy duty wall mount for use with pan/ tilts and/or enclosures
Cable Entry One cable entry hole on top of mount arm; two 3/4-inch NPT threaded holes (one on each side) for conduit. Cable may also enter the mounting arm directly through cutout on mounting plate. Three hole plugs provided to cover unused holes. Suggested Mounting Method Secure to wall with six 3/8-inch diameter fasteners of suitable size (not supplied)
Maximum Load 300 lb (136.08 kg)
Construction 0.25-inch (6.35 mm) aluminum
Finish Gray polyester powder coat
The following standard receivers (indoor or outdoor models) can be mounted to the WM3026:
