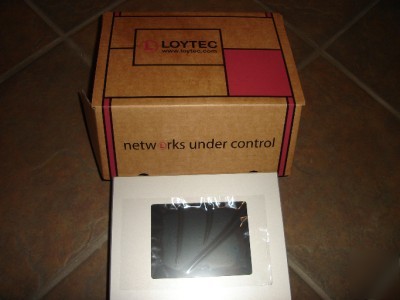

New loytec l-vis lvis-3E100 touch panel visualization
LOYTEC L-VIS LVIS-3E100 TOUCH PANEL NEW VISUALIZATION
L-VIS impresses with its timeless design, harmonic
integration into modern and historical
architecture as well as its extremely user
friendly concept. Primarily any information
from a CEA-709 network can be displayed or
controlled by the touch panel. NVs represent
the interface to the CEA-709 network. Both
static and dynamic NVs are supported as well
as user defined NVs (UNVTs) and configuration
The graphical interface can easily be adapted
by using customized and detailed images
or graphics in common file formats (*JPG,
*.BMP, *.TIF, etc. and even animated *.GIF). Any
Information can be displayed in various ways.
Dynamic information is shown as numerical
values, changing icons, bar graphs or text.
L-VIS supports basic automation functions
such as alarming, scheduling, and trending.
This includes a local scheduling service as well
as the possibility to configure several local and
remote 24 hour schedulers through display
elements. Thus L-VIS has the capacity to run as
a standalone device or to interact with other
L-VIS also provides functionality to generate,
deliver, acknowledge, and display alarm conditions
and logs. Logged information is available
The trending capability includes trend graphs,
a data log of values and time stamps and transferring
the recorded data to a host PC for analysis
and for storage. Another helpful feature is
the automatic transfer from the L-VIS recorded
data to a preset destination. Furthermore L-VIS
supports common mathematical operations
and functions, as well as boolean expressions.
L-VIS supports event-driven e-mail notification
as a result of a predefined action triggered by a
specific status or an exceeded high limit.
ISSUE 6 DOCUMENT #890151 October 2009
Graphical user interface with touch panel for
Fully complient with CEA-709, CEA-852, and
5.7": 320x240 color LCD display
Dimmable backlight, 256 colors (VGA)
Representation of user defined graphics,
numbers, text, bar charts, trend logs, and
Visualization and control of individual data
Supports Alarming, Scheduling, and Trending
Supports common mathematical operations
and functions as well as Boolean expressions
Event-driven e-mail notification
Remote access via the VNC (Virtual Network
Access control with PIN code
Simple, graphical programming with L-VIS
configuration software supplied with the unit
(runs as LNS Plug-In or stand-alone tool)
WYSIWYG preview on PC screen
Support of dynamically created network variables
Support of user defined NVs (UNVTs) and
configuration properties (SCPTs, UCPTs)
Up to 1000 input or output network variables
Up to 512 destination addresses can be used
Supports TP/FT-10 or CEA-852 Ethernet
Connector for external temperature sensor
Digital Input for external light switch
Aluminium frame with anodized finish
Flush-mounting in combination with a mounting
International protection rating:
Dimensions (5.7", LVIS-3E100):
W = 210 mm, H = 165 mm, D = 60 mm
Supply Voltage: 9-24 V AC or DC
Ultra Low Power Consumption:
LVIS-FRAME1 Mounting frame (5.7" model)
L-TEMP External Temperature Sensor
The L-VIS touch panel presents valuable parameters from the network to service personnel and
the end user. Any control command can be sent in order to e.g. move sun blinds, control cold-storage
rooms, switch lights, lock doors, or open valves. The L-VIS can also be used in a switch cabinet.
It can monitor and display important system parameters like energy consumption, alarms, or the
temperature in cold-storage rooms. Additionally, L-VIS supports basic automation functions such as
alarming, scheduling, and trending.
Remote Access and E-mail Notification
Remote access is supported via TCP/IP through an integrated VNC (Virtual Network Computing)
server. The content of the L-VIS touch panel can be brought to a PC or PDA using the VNC protocol.
Since VNC is platform independent, VNC viewers are available for several operating systems.
When connecting L-VIS as a TP/FT-10 node, a remote network interface functionality is available. This
way the TP/FT-10 channel can be accessed by an IP connection. This as well allows remote analysis
with LOYTEC's protocol analyzer LPA.
L-VIS features event-driven e-mail notifications with predefined actions. Individuals are promptly
informed about an abnormal status. Trend data are forwarded as an e-mail attachment, e.g. for
LOYTEC electronics GmbH, Blumengasse 35, 1170 Vienna, Austria
http:// ****@loytec.com tel.: +43-1-402 08 05-0 fax.: +43-1-402 08 05-99
Easy configuration is guaranteed with the L-VIS configuration software supplied with the unit. The
software can run as a stand-alone tool or as an LNS plug-in, compatible with LNS 3.0 and LNS TE
applications like NL220, ALEX and LonMaker . An object-oriented configuration of the graphical
interface with WYSIWYG preview and predefined functions make it easy and efficient to create a
