Vat mini uhv gate valve actuator pn: 01032-KE44-005
VAT Mini UHV Gate Valve Actuator PN: 01032-KE44-005

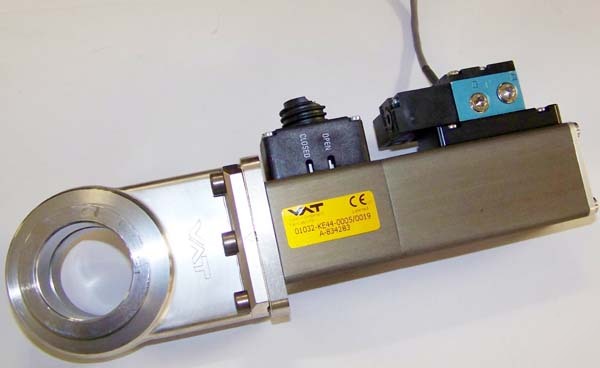

This is a Used VAT Mini UHV Gate Valve Actuator model: 01032-KE44-0005. This is a gate valve featuring a modular actuator and is used often in the inner workings of semi-conductor process systems. It is also lubricant free. This item was pulled from a working environment but has not been tested by us. Cosmetically, it is in fair condition. There is a broken female connector sleeve on the side of the unit as photos show. The posts are still intact but the unit cannot be properly tightened. The photos are of the actual item for sale. Only what is shown in the photos is included.
* Inside diameter (ID) : 40 (1 1/2") mm/inch
* Flange : ISO-KF (compatible with ISO 2861 T1)
* Body material : Stainless steel
* Sealing technology : MONOVAT-System
* Sealing materials : Bonnet: Metal / Gate: FKM (VITON)
* Pressure range : 1 10-10 mbar - 2.0 bar (abs)
* Molecular flow conductance :160 ls-1
* Max. differential pressure closed position :2 bar
* Max. pressure on seat side during opening :0.03 bar
* Compressed air pressure min. - max. overpressure :4.5 - 7 bar 65 - 102 psi
* Volume of air cylinder :0.06 l / 0.0021189 ft3
* Closing or opening time : 0.7s
* Max. temperature : Valve body 200 C, Actuator 200 C, Position indicator 80 C
