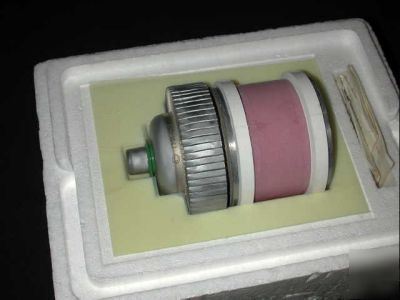

Russian nos pulsed triode gmi 42B
A forced-air cooling, metal-ceramic form made, pulsed triode. A main function is a pulsed power commutation in pulsed modulators.
Nominal anode constant voltage 30 kV.
Max cathode pulsed current 33 A.
Max impulse duration 50 micsec
Max anode dissipation power 500 W
Grid negative voltage (absolute value) 600 V
Grid overstepping voltage in a pulse 1400 V
Max grid dissipation power 25 W
A tube is needed in some training before the first use after storage.
*Attention! All technical data are from the tube manufacturer certificate. It may be different from other Internet data sources.
