Nicolet integra 20 digital oscilloscope 4 ch 500 khz

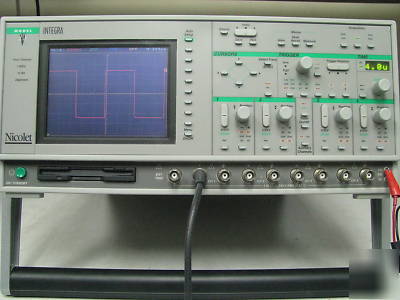

Nicolet Integra 20 Color Digital Oscilloscope
Four Differential (Single Ended optional)
5 mV - 20 V/div in a 1-2-5 sequence
40 - 160 mV range...................... 0.4% Full Scale
0.4 - 160 V range........................ 0.2% Full Scale
240 Volts RMS to 500 Hz, 360 V DC peak
DC (5mV/div - 200mV/div ranges) ............>72 dB
1 kHz ...........................................................>60 dB
100 kHz .......................................................>40 dB
40mv to 1.6 V ranges .................. 5 V (DC+AC peak)
4 V to 16 V ranges ............................................. 50 V
40 V to 160 V ranges ....................................... 100 V
1 MS/s to 0.25 S/s in 1, 2, 5 time/div. steps
Any channel, external, AC line
0 - 100% of sweep in 0.2% steps
Variable noise reject from > 0.01 division
12 Volts Full Scale ( 6 Volts)
Variable noise reject from > 20 mV
AC, DC, 1 kHz LF reject, 15 kHz HF reject
Pulse width, frequency/period, skew, missing event, divide
by N, dual slope, combination, A delayed by B, B gates A
Selects voltage range, timebase and trigger level for
5.6" Color Liquid Crystal with over 9000 colors
Roll, Refresh, XY, Single-shot, Persistence
Please view pictures for condition and performance.
We have a digital copy of the Integra Operation Manual, please remind us to send a copy along with the unit.
