Micro splice protection tube for 250UM fiber splicing

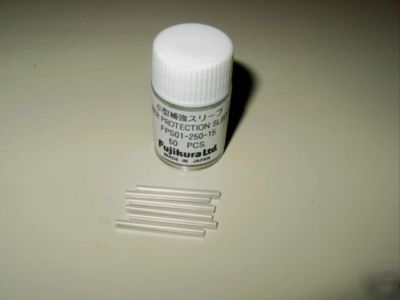

Micro Splice Protection Sleeves
Fujikura Part number: FPS01-250-15
http:// .sg/Files-Directory/E_FP.pdf
The FPS01 series are specially designed for optical components, where small
packaging is a priority. These micro sleeves provide the known reliability of Fujikura sleeves in
the smallest possible lengths. This easy and cost effective method is a great alternative to recoating.
The FPS01-250-15 accommodate 250um buffer coating sizes, and are 15mm in length. This gives great flexibility in
Outer tube FPS01 series: Poliolefin based on Polyethylene
Inner tube : Ethylene-Vinyl Acetate (Polyolefin Copolymer)
Strength member FPS01 series : Stainless steel
Operation condition (after shrink) : 10 to 50 degree C, 0 to 95%RH(Non
Storage condition (before shrink) : 40 to 60 degree C, Non dew
