Globe motor 12 dc gear encoder robot hobby made in usa

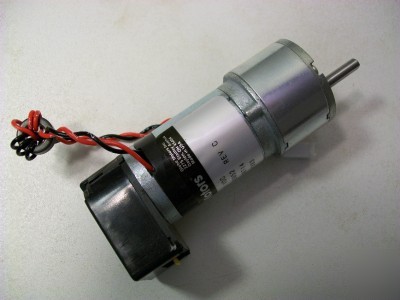

Globe Motor 12 VDC gear /w encoder 4 robot control new
This model is designed for industrial uses but also
great for Hobbies, Robotics, student projects,etc.
****Equipped with Gear and Encoder***
http://hades.mech.northwestern.edu/wiki/images/a/a3/Globe-cad.pdf
http:// /13sp_in.pdf
Torque rating: Standard sintered gear strength to 100 oz.
in. Wide-face sintered gear strength to 160 oz. in.
Gears: Precision high density sintered steel
Shaft: Precision-ground; through hardened AISI 1137-1141 steel.
Options: length, flats, pinions, gears. Shaft material
may change depending upon options selected
Bearings: Motor and gearbox bearings are life-lubricated
sleeve bearings. Ball bearing option available
Gearbox cover: Corrosion-resistant aluminum housing
Mounting flange: Die-cast zinc, coated to prevent
Two Channel Optical Encoder - HEDS-5505#A04
Lines / Revolution (lines/revolution)
Quick assembly two channel, through hole: 8.9mm, shaft diameter: 5/32"
The HEDS-5540 and 5640 also have a third channel Single 5 V supply index output in addition to the two channel quadrature. This index output is a 90 electrical degree, high true index pulse which is generated once for each full rotation of the codewheel.
http://hades.mech.northwestern.edu/wiki/index.php/Actuators_Available_in_the_Mechatronics_Lab#Globe_motor_with_187.68:1_gearhead_and_500_line_encoder
