Exfo ftb-100 mm otdr ftb-7200B FTB100 ftb-7212B-c-ei
* EXFO FTB-100 Mini-OTDR Main Frame
* EXFO FTB-7212B-C-EI Multimode 850/1300 Module

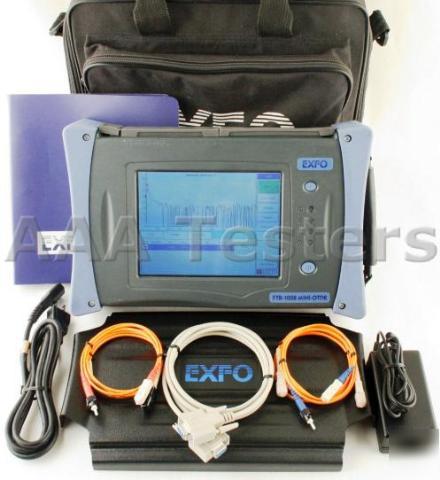

EXFO FTB-100 MINI-OTDR Main Frame With EXFO FTB-7212B-C-EI Multimode 850/1300 Module
Includes Soft Carrying Case & Full Accessories!
The FTB-100 Mini-OTDR is a dedicated optical time domain reflectometer that characterizes a fiber-optic span, usually optical fiber sections joined by splices and connectors. The optical time domain reflectometer (OTDR) provides an inside view of the fiber, and can calculate fiber length, attenuation, breaks, total return loss, and splice, connector and total losses.
The FTB-100 Mini-OTDR supports EXFO s extensive line of OTDR test modules, which offers all the features required by both intensive and occasional OTDR users.
* offers impressive dynamic range with short dead zones.
* performs quick acquisitions with low noise levels to ensure accuracy.
* acquire OTDR traces made of up to 128 000 points that provide a sampling resolution as fine as 4 cm.
* include a light source and can also include an (OPTIONAL) visual fault locator.
* can include an (OPTIONAL) power meter for more test possibilities.
* is available with a color or monochrome touchscreen.
* is splashproof and rugged for outside plant testing.
* (The OTDR application provides the following trace acquisition modes:)
* Automatically calculates fiber length, sets acquisition parameters, acquires traces, and displays event tables and acquiredtraces.
* Offers all the tools needed to perform integral OTDR tests and measurements and gives you control over all test parameters.
* Tests fibers and compares the results to a reference trace that was previously acquired and analyzed. This allows you to save time when testing a large number of fibers. Reference trace documentation is also automatically copied to new acquisitions
Today s telecom market imposes test challenges that stem from a never-beforeseen variety of fiber-optic networks. Ultra-long-haul, high-fiber-count 10 Gb/s and high-speed DWDM networks. CWDM and 2.5 Gb/s metropolitan networks. Passive optical networks (PONs) and other types of access networks. All of these create increasingly specific and demanding testing requirements, making OTDRs more essential than ever for installing, maintaining and troubleshooting networks.
EXFO s OTDRs deliver the right tools for accurately detecting and characterizing splices, connectors, splitters, breaks and other events along a fiber link. The FTB-7000B provides a wide choice of configurations to conveniently test all types of networks. The FTB-7000D and FTB-70000C enables multiple-wavelength testing by combining triple-wavelength capability in a single module. Plus, the FTB-7000D offers extremely short dead zones perfect for short-distance applications and faster-than-ever acquisitions.
EXFO s OTDR modules meet all your testing needs with numerous singlemode and multimode configurations available at several wavelengths. Most important, they are field-interchangeable and compatible with both of EXFO's rugged, portable test platforms, the powerful FTB-400 Universal Test System and the compact FTB-100B Mini-OTDR.
