Young touchstone heat exchanger #f-301-ey-4P

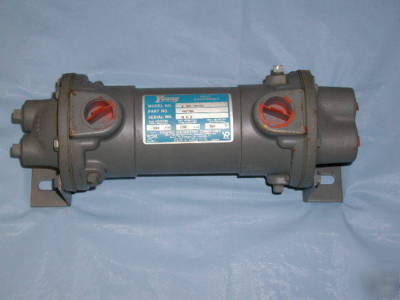

Young Touchstone Heat Exchanger #F-301-EY-4P
* Economy is possible because their multi-pass, close-packed construction permits a reduction in cooling liquid requirements. In addition, the tube side is readily accessible for cleaning and inspection.
* The use of copper tubing in F exchangers provides some resistance to many mildly corrosive fluids.
* Bonnets provide smooth flow with minimum impact on the tube ends and tube sheets.
* F fixed tube bundle heat exchangers are non-ferrous. The tubes are high temperature bonded into the headers, allowing minimum tube pitch and permitting a greater number of tubes, resulting in maximum cooling surface area per unit volume of space.
* Sturdy brackets of heavy gage steel are adjustable for installation in various positions. Rotatable through 360 degrees.
* F: Fixed tube bundle with 150 PSI (1040 kPa) shell.
* 3 (shell diameter): 3.62"
* E (baffle spacing): 4.50"
* Y (tube diameter): 0.250"
