> LF357BN - series monolithic jfet input operational amp

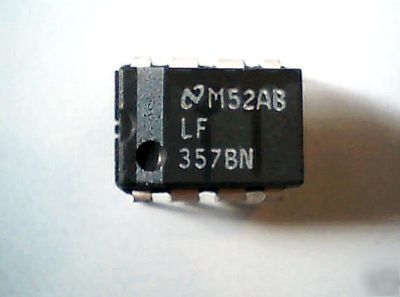

LF357BN - series monolithic jfet input operational amp
LF357BN - Series Monolithic JFET Input Operational Amplifiers - National Semiconductor
http://pdf1.alldatasheet.com/datasheet-pdf/view/8598/NSC/LF357BN.html
These are the first monolithic JFET input operational amplifiers
to incorporate well matched, high voltage JFETs on the
same chip with standard bipolar transistors (BI-FET
These amplifiers feature low input bias and offset
currents/low offset voltage and offset voltage drift, coupled
with offset adjust which does not degrade drift or
common-mode rejection. The devices are also designed for
high slew rate, wide bandwidth, extremely fast settling time,
low voltage and current noise and a low 1/f noise corner.
Replace expensive hybrid and module FET op amps
Excellent for low noise applications using either high or
low source impedance very low 1/f corner
Offset adjust does not degrade drift or common-mode
rejection as in most monolithic amplifiers
New output stage allows use of large capacitive loads
(5,000 pF) without stability problems
Internal compensation and large differential input voltage
Precision high speed integrators
