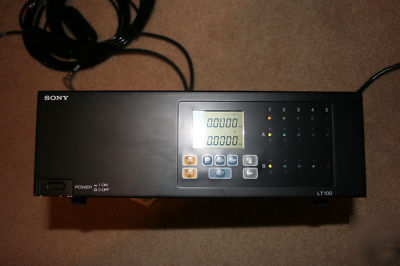

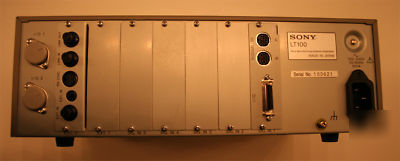

Sony LT100 digital display 10 probe hookup
Unit has been 100% tested and verified in working condition.
Number of display axes: Any two of up to 10 axes inputs
Display resolution: 0.5 m / 1 m / 5 m / 10 m selectable
Input: A/B phase (NPN open collector)
Sony models: GB, GL, SR, DG-B, DL-BR, DT12/MT10 optical encoders with A/B phase NPN output
Output: By expansion using counter boards (max 5), RS232C, BCD
Power supply: 100Vac to 230Vac, 50/60 Hz
Interface compatability: Sony PZ201footswitch, Sony P40 statistical printer, PC serial port, PLC
Multiple input 6 digit backlit LCD display unit. Reset, preset, current, maximum, minimum, peak to peak, Go/No GO and add/subtract functions.
The LT00 display can be linked (daisy chained) to other LT100 displays (max of 4) using a LZ61 link cable. A total of 40 axes can be measured and monitored in this way.
