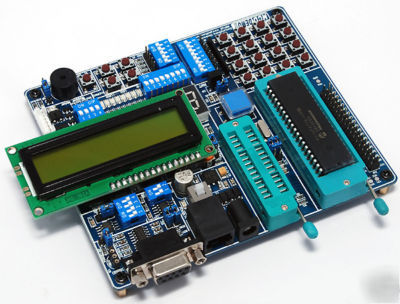

PIC 16F87X Microcontroller Development Board
* PIC 16F87X Development board 2 consists of :
* ICD2 Header connector for programming / Debugging with Microchips ICD2
* 16x2 LCD Character display
* RS232 Serial communication port
* DB9 connector and RS232 Transeiver (for serial Comms)
* I2C Serial EEprom 24c01B - dipswitch used for write enable and setting device address (on supported eeproms)
* 2 pin sockect for main Osc (4MHz resonator -Default) allows for easy changing of the main Osc frequency. Provion for loading caps if using a crystal.
* Uncommited PIC I/O ports - So the PIC's I/O lines may be connected to any of the onboard modules or external circuits
1. mcd-demo2-PIC 16F87X Microcontroller Development Boar
3. 1 x RJ12 Connection Cable.
5. 1602 LCD with Yellow backlight
6. CD-ROM (Development PCB Layout,Development Board Schematic,Sample code (C / ASM) for each onboard module, MPLAB 7.50 .)
7. Power supply(110-240 AC TO 9V DC)
