New atc 305E 008-a-20-px 120 sec 120V 60HZ reset timer
ATC (Automatic Timing & Controls)

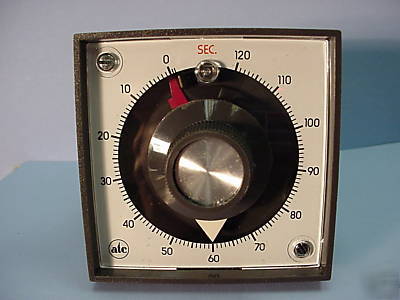

Model 305E Motor Driven Analog Reset Timer (NEW)
Noted for its circuit flexibility, the ATC 305E also provides the highest accuracy among analog timers. The ATC 305E provides delay, interval or pulse timing function for up to 7 load circuits through two instantaneous and two delayed switches. It features a plug-in design and cycle progress indication.
Highest Accuracy: Because of its exclusive infinite engagement clutch, the 305 has a repeat accuracy of 0.2%, highest of any timer in its class.
* Dust-tight seal against the housing-panel or surface-mounted
* Reset to a full-scale setting within 0.1 sec,
* Externally accessible contacts at 14 point terminal block
* Mechanical life expectancy over 5,000,000 operations
0 - 120 Seconds at 60 Hz 120VAC
AC MODELS: 0.2% of full scale
MECHANICAL: over 5,000,000 operations
CONTACTS: 3,000,000 operations under resistive or inductive load of 1A
Synchronous, permanently lubricated
INSTANTANEOUS: two, each SPDT; self-cleaning, heavy-duty silver contacts.
DELAYED: two, each SPDT; precision type, silver contacts
14 screw terminals accessible at rear; integral wiring diagram on timer housing
Plug-in design; completely gasketed, dust-tight when surface or panel-mounted
Running Current 0.128 A , Inrush Current 0.628A
