> Lincoln K2343-3 eagle 10,000 plus, welder & generator
Lincoln K2343-3 eagle 10,000 plus, welder & generator
http:// /images/Lincoln_logo.jpg NEW
Lincoln K2343-3 Eagle 10,000 Plus Welder and Generatorhttp:// /images/Lincoln_K2343-1_Eagle_10000_Generator_&_Welder.jpg

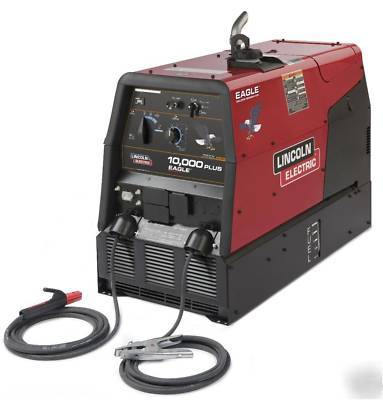

Lincoln K2343-3 Eagle 10,000 Plus Welder and Generator
Make Work Fly with an Eagle 10,000 Plus!
A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Eagle 10,000 Plus does a variety of basic welding jobs. And with 10,500 watts of surge AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power.
Stick, TIG, MIG, Flux-Cored, Gouging
* 10,500 Watts Peak Single-Phase AC Generator Power - Most peak power in its class. Use peak power for motor starting. 500 watts more!
* 9,000 watts continuous power for high capacity needs such as a back-up generator, powering a Pro-Cut plasma cutter, or an Invertec inverter welder. Also for lights, a grinder or other power tools.
* 23 HP Kohler Gasoline Engine - 2-cylinder, 4-cycle OHV (overhead valve) air-cooled.
* Smooth DC Welding - Suitable for a broad range of stick electrodes sold at a retailer near you, including Lincoln Fleetweld 37 (AWS E6013), Fleetweld 47 (AWS E7014), Fleetweld 180 (AWS E6011), Lincoln 7018 AC (AWS E7018 H8) and Lincoln Excalibur, 7018 (AWS E7018 H4R).
* Weld with up to 5/32" (4.0 mm) electrodes.
* Rugged Reliability - To ensure reliable operation in a wide variety of environmental conditions.
* Three-Year Lincoln warranty (parts and labor) on welder. (Engine is warranted separately by the manufacturer.)
Low Noise 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
Smooth DC welding output for a broad range of stick electrode types.
MIG, Flux-Cored and basic TIG welding in constant current mode (with optional equipment).(1)
Welding accessories included.
_ 10,500 Watts Surge Single-Phase AC Generator Power
9,000 watts continuous power for generator, plasma cutter or inverter welder.
Lights, grinder, power tools.
_ 23 HP Kohler Gasoline Engine
2 cylinder, 4 cycle overhead valve air-cooled design.
Oil drain extension for easy oil changes.
12 gallon tank for extended run times.
Only 1.3 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
Welding and AC Generator Outputs
(1) A constant voltage (CV) power source is recommended for wire feeder applications. The across-the-arc Lincoln LN-Series wire feeders may be used with a constant current (CC) power source, such as the Eagle 10,000 Plus, for non-critical applications where weld quality and deposition properties are not critical.
Dimensions (in) H x W x D : 29.9 x 21.5 x 42.3
Dimensions (mm) H x W x D : 759 x 546 x 1074
http:// /images/Lincoln_K2343-3_Eagle_10000_Generator_&_Welder_extra_1_823x1096.jpg
http:// /images/Lincoln_K2343-3_Eagle_10000_Generator_&_Welder_small.jpg
20 ft. (6.0 m) of #2 electrode cable, electrode holder 15 ft. (4.5 m) of #2 work cable and work clamp
http:// /images/Lincoln_PoweredByKohler.jpg
http:// /images/Lincoln_SA.jpg
Small Two-Wheel Road Trailer with Duo-Hitch
Invertec V205-T AC/DC One-Pak Package 115/230/1/50/60
Recommended Plasma Cutter Options
Pro-Cut 55 w/25 ft Torch 208/230/460/1/3/60
