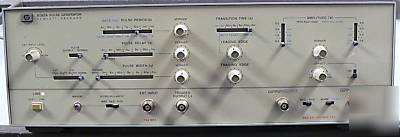

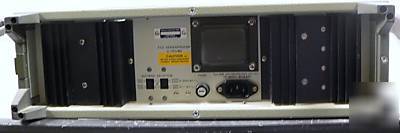

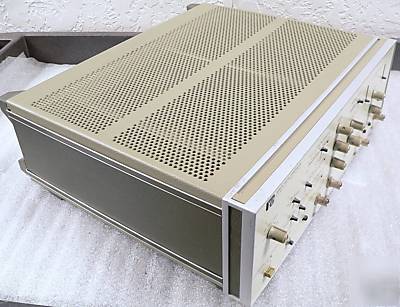

Hp 8082A pulse generator on sale
HP 8082A PULSE GENERATOR ON SALE!!!
* <1ns variable transition times
* Switch selectable ECL levels
The HP 8082A is a fast pulse generator with all pulse parameters variable. With repetition rates up to 250 MHz, transition times down to 1 nsec, and amplitudes to 5V, the HP 8082A is ideally suited for TTL and ECL logic designs. Using the HP 8082A, you can rapidly test logic circuits under all operating conditions by simply varying pulse parameters. Although a highly sophisticated instrument, the HP 8082A is still easy to use because of it's logical front panel layout, and switch selectable ECL output levels. Another feature that contributes to easy operation is the square wave mode. You can, for example, carry out toggle rate tests in this mode up to 250 MHz without having to worry about pulse duty cycle.
