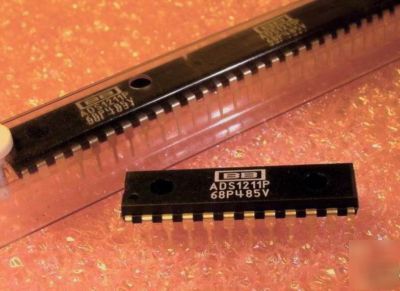

ADS1211 adc 24BIT delta-sigma 8CH w/mux ADS1211P (2)
24-Bit, 8-Channel Delta-Sigma Analog-to-Digital Converter
with 4-Channel Input Multiplexer
The ADS1211 is a precision, wide dynamic range, delta-sigma analog-to-digital converter with 24-bit resolution operating from a single +5V supply. The differential inputs are ideal for direct connection to transducers or low level voltage signals. The delta-sigma architecture is used for wide dynamic range and to guarantee 22 bits of no missing code performance. An effective resolution of 23 bits is achieved through the use of a very low-noise input amplifier at conversion rates up to 10Hz. Effective resolutions of 20 bits can be maintained up to a sample rate of 1kHz through the use of the unique Turbo modulator mode of operation.
