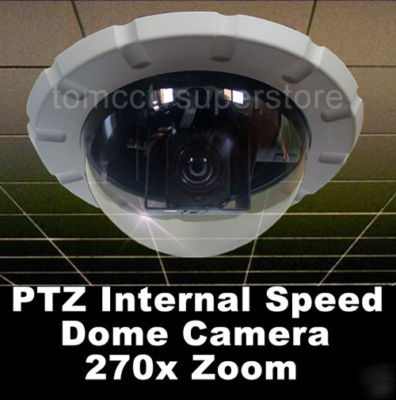

Cctv 7" 270X sony ccd ptz speed dome embedded d/n cam
The camera allows a user to pan, tilt and zoom to any view, 360 degrees. The camera offers automatic functio-
ns such as auto touring and response. The camera is equipped with a high resolution 480 TV lines resolution
color Sony 1/4" super had CCD camera. The camera operated on extremely low light and and switches night
mode when the light become to dim. The lens is equipped with an auto iris, auto focus and can zoom 27 times
optically. The camera operates on 15V DC power.
* Pan range: 0 -360 /S,Tilt range:0 -90 /S.
* Pan speed : 5 -20 /S,Tilt speed : 5 -20 /S.
* Presets points quantity: 64 positions with Zoom and Focus.
* Cruising Route: 1 group multiple cruise
* Auto-reset: can set by yourself.
* Baud rate: 1200/2400/4800/9600 optional.
* Control protocol: Pelco-D, Pelco-P.
* Power supply: 15V DC 2.5A.
* Installation option: Wall mounting bracket.
Weather Proof Housing, TVS1500W Lightning Proof Surge Proof
53.5 degrees (w) Horizontal 2.3 degrees (t)
