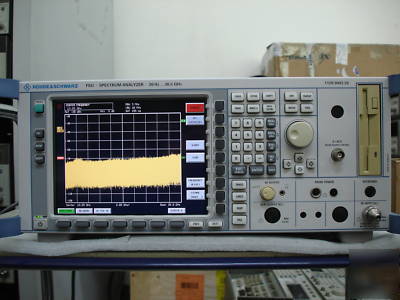

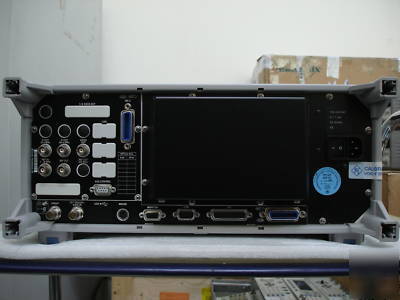

> R&s FSU26 w/B10,K73 20 hz to 26.5 spectrum analyzer
R&s FSU26 w/B10,K73 20 hz to 26.5 spectrum analyzer
This item is tested, good condition. No accessories.
opt.K73-3GPP UE FDD Application Firmware(including HSUPA)
opt.B10-External Generator Control
The R&S FSU spectrum analyzers are performance leaders in dynamic range, phase noise, level accuracy, and resolution bandwidth - all factors that are essential for the user's ability to design, characterize, and manufacture next generation wireless elements.
* Frequency range 20 Hz to 3.6 GHz, 8 GHz, 26.5 GHz, 43 GHz, 46 GHz, 50 GHz and 67 GHz
* Displayed average noise level -158 dBm (1 Hz)
* Phase noise typ. - 133 dBc ( 1Hz) at 10 kHz
* Resolution bandwidth 1 Hz to 50 MHz
* Displayed average noise level with preamplifier R&S FSU-B24: typ. - 168 dBm (1Hz) at 20 GHz, typ. - 155 dBm (1Hz) at 50 GHz
R&S FSU67 - First spectrum analyzer with a direct frequency range to 67 GHz and fundamental mixing:
* Unambiguous frequency indication without the image response and multiple responses known from external harmonic mixers
* Wider level range with a much higher allowable reference level than with harmonic mixers
* Good level accuracy to 67 GHz
* Low noise floor: -152 dBm (1 Hz) at 2 GHz, -130 dBm (1 Hz) at 65 GHz
* Up to 70 measurements per second (including trace transfer via GPIB)
* Measurement routines for TOI, MC ACP(R), OBW, CCDF, APD, etc. as standard
* Application firmware available for GSM/EDGE, Bluetooth , WCDMA/HSDPA/TD-SCDMA,CDMA2000 /1xEV-DV/1xEV-DO,
