> Harrison alpha 400 plus cnc and manual lathe 16" x 49"
Harrison alpha 400 plus cnc and manual lathe 16" x 49"

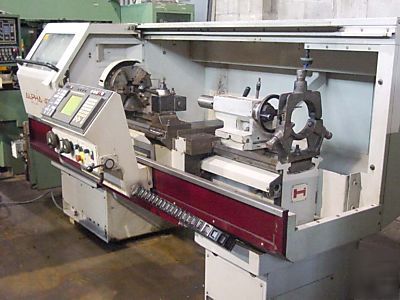

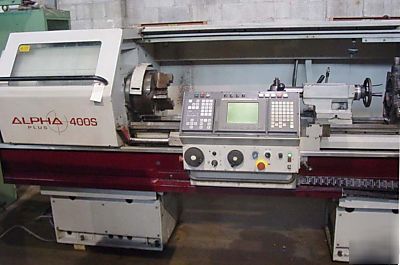

HARRISON ALPHA 400 PLUS CNC/MANUAL LATHE

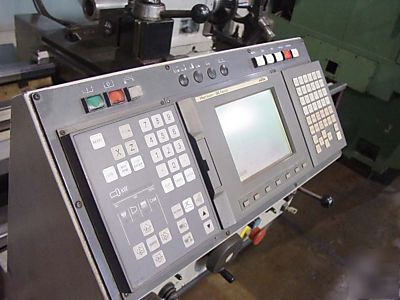

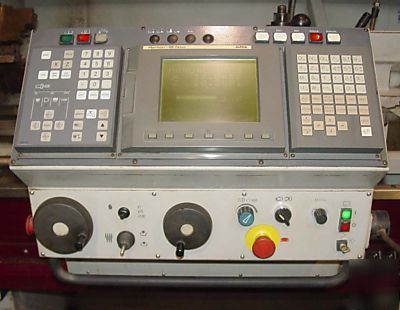

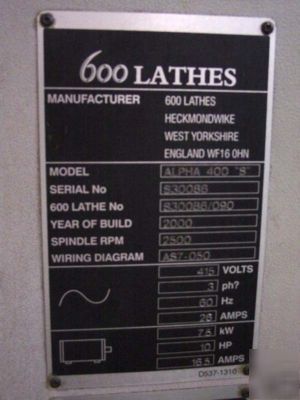

Model Alhpa 400 Plus, S/N S30086, New 2000Stock # K13178 EQUIPPED WITH:Fanuc Alpha CNC Control (0i), MPG Handwheels for Manual Operation,
Inch/Meteric Programming, RS-232 Port, Variable Speed Spindle Between

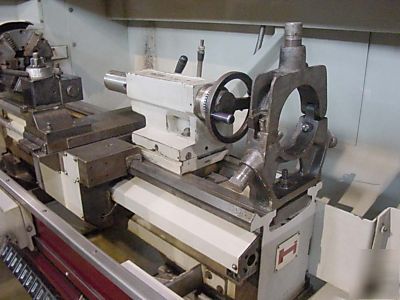

(3) Gear Ranges, Aloris Style Tool Post, Manual Tailstock, Steady Rest,
Coolant Pump. CATALOGUE SPECIFICATIONS:Max Swing Over Bed...................................... 16"
Max Swing Over Carriage................................. 10"
Max Tailstock Position.................................. 49"
Max Machinable Center Distance.......................... 49"
Feed Range (Infinitely Variable)........................ .1-118 IPM
Spindle Bore............................................ 2"
Spindle Nose............................................ D1-6
Spindle Speed Range (1 RPM Increments).................. 15-2500 RPM
Spindle Horsepower...................................... 10 HP
Electrics............................................... 230/3/60
Approximate Machine Dimensions.......................... 102" x 60"
Approximate Machine Height.............................. 63"
Approximate Machine Weight.............................. 4000 LBS
CONDITION: Machine Appears to be in Very Good Condition !! Under power at our facility in Cincinnati.
