Clausing colchester lathe 15" lathe 15 x 50 colchester

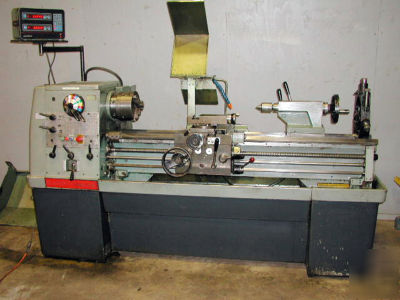

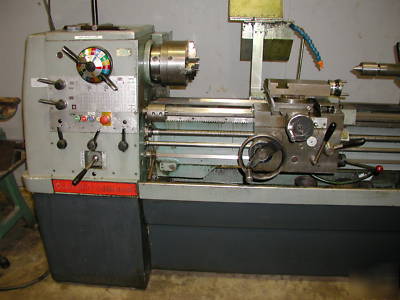

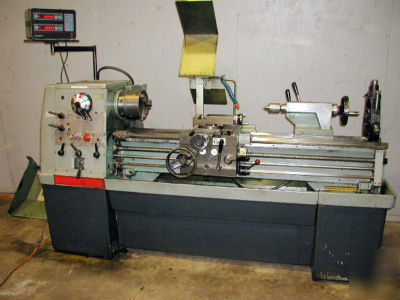

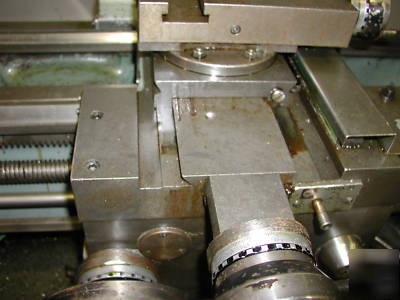

CLAUSING COLCHESTER 15" X 50"cc ENGINE LATHE, INCH/METRIC; EQUIPPED WITH 8" BUCK ADJUSTABLE 3-JAW CHUCK, ROLLER BEARING TYPE STEADY REST, LIVE CENTER, COOLANT, SPLASH GUARD, ACU-RITE DIGITAL READ OUT (SORRY...ONLY 1-AXIS), HARDENED BEDWAYS; IN VERY GOOD OPERATING CONDTION; CALL MARC @ (***) 390-0006 TO INSPECT UNDER POWER IN EDISON, NJ; WE CAN HELP FINDING COMPETITIVE TRUCKING RATES
CLAUSING COLCHESTER 15" X 50"cc ENGINE LATHE, MODEL # 8031
SPECIFICATIONS: SWING OVER BED ....................... 15-1/4"
SWING OVER CROSS SLIDE ............... 9-1/2"
DISTANCE BETWEEN CENTERS ............. 50"
BAR CAPACITY THROUGH SPINDLE ......... 2-1/8"
HOLE THRU SPINDLE .................... 2-3/16"
SPINDLE NOSE, CAMLOCK SIZE ........... D1-6"
SPINDLE SPEEDS (16) .................. 25 - 2000 RPM
HEADSTOCK & TAILSTOCK SPINDLE TAPER .. #4 MORSE
TAILSTOCK SPINDLE TRAVEL ............. 6-1/8"
TAILSTOCK SPINDLE DIAMETER ........... 2-5/16"
WIDTH OF BED ......................... 11"
FEEDS: LONGITUDINAL (45) .............. .0015 - .040 IPR
CROSS (45) ..................... .00075 - .020 IPR
THREADS: INCH (45) ...................... 2 - 72 TPI
METRIC (39) .................... .2 - 14 mm
DIMENSIONS ........................... 96" x 38" x 52" APPROX WEIGHT ........................ 3,500 LBS

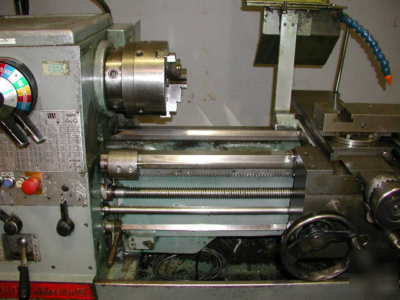

8" 3-JAW ADJUSTABLE BUCK CHUCK
STEADY REST - ROLLER BEARING TYPE

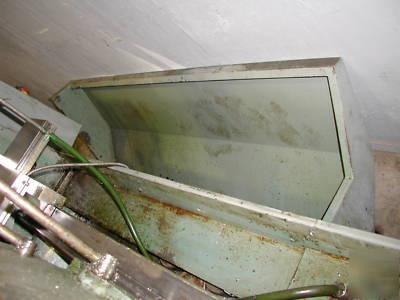

COOLANT SYSTEM w. FULL LENGTH REAR SPLASH GUARD
7.5 HORSE POWER SPINDLE DRIVE MOTOR, 230 VOLT/3 PHASE

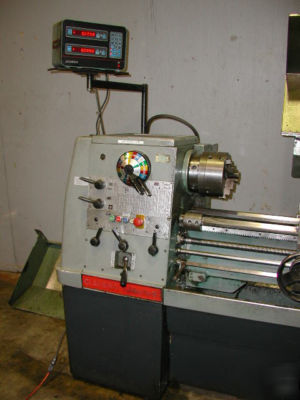

ACU-RITE DIGITAL READ OUT (1-AXIS ONLY)
