3 elmo servo amplifier digital control boards #dbaf-25

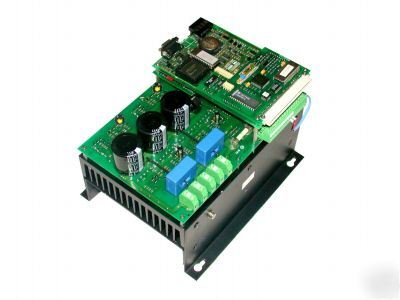

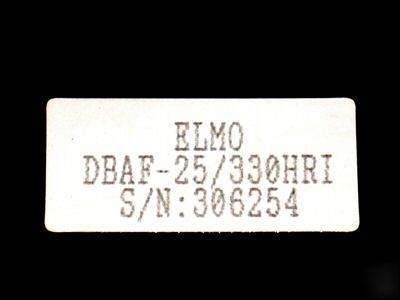

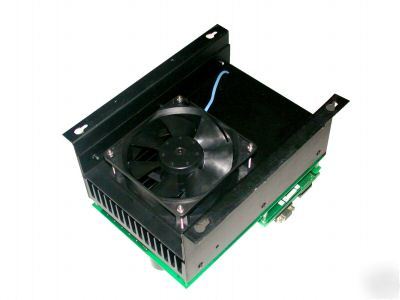

3 ELMO SERVO AMPLIFIER DIGITAL CONTROL BOARDS #DBAF-25
These are very nice units in like new condition and they are fully guaranteed.
* Accepts motion commands via RS232 or RS485
* Buffering for pipe lining instructions prior to execution
* Battery-backed RAM for storing user programs and parameters
* Conditional statements for controlling program execution real- time.
* Programmable time and position trip points
* Variables for entering and changing system parameters
* 2 uncommitted high speed inputs.
* Arithmetic and logic functions for manipulating parameters
* Digital filter with programmable gain, damping and integrator
* 0-600,000 quadrature counts/second speed range
* One analog input - 11 bit resolution
* Master/slave operation with programmable following ratio (master information from an optical encoder or from Pulse and Direction inputs)
* Adjustable continuous and peak current limits
http:// /support/archived-manuals/MAN_DBA_.PDF
