> 2003 kitamura hx-500I cnc horizontal machining center
2003 kitamura hx-500I cnc horizontal machining center

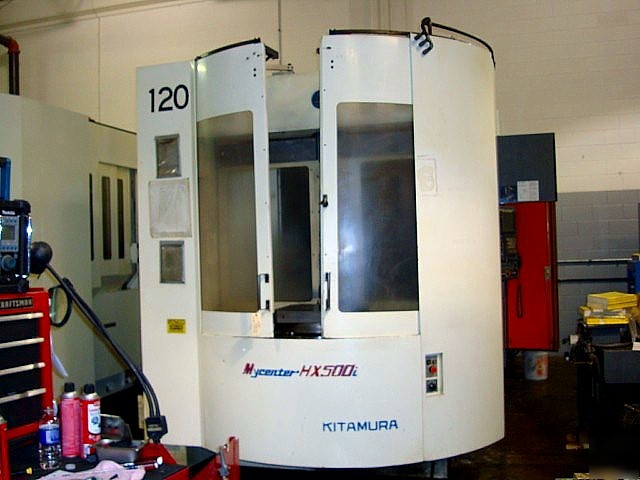

2003 KITAMURA HX-500i CNC HORIZONTAL MACHINING CENTER
KITAMURA HX-500i CNC HORIZONTAL MACHINING CENTER
PALLET DIMENSIONS................... 19.7" x 19.7"
NUMBER OF PALLETS................... 2
PALLET LOAD CAPACITY................ 1760 LBS.
AXIS TRAVELS X - AXIS............... 34.3"
TABLE INDEXING...................... 360,000 POSITIONS
RAPID TRAVERSE...................... 1969 IPM (X,Y,Z)
SPINDLE SPEED....................... 12000 RPM
NUMBER OF STEPS (GEARED HEADSTOCK).. 2
SPINDLE TAPER....................... #50
MAIN MOTOR.......................... 35 HP
NUMBER OF TOOLS..................... 50 ATC
MAX. TOOL LENGTH.................... 17.7"
MAX. TOOL DIAMETER.................. 7.9"
MAX. TOOL WEIGHT.................... 44 LBS.
TOOL CHANGE TIME (TOOL TO TOOL)..... 2 SEC.
TOOL CHANGE TIME (CHIP TO CHIP)..... 6 SEC.
MACHINE WEIGHT...................... 44440 LBS.
MACHINE DIMENSIONS................. 228" L x 118" W x 134"H
FANUC 16iM CNC CONTROL - 1280M of memory
1969 IPM FEEDRATES ON ALL 3 SOLID BOX WAYS
(1) SIMULTANEOUS X,Y AND Z STROKES PLUS FULL 4TH AXIS
(2) HIGH SPEED & HIGH TORQUE SPINDLE: 35 ~ 12,000 (2 SPEED)
(3) HIGH SPEED ATC - 2 SEC. TOOL TO TOOL/5.5 SEC. CHIP-CHIP
