Square d panelboard panel 1200 amp 480 vac main breaker

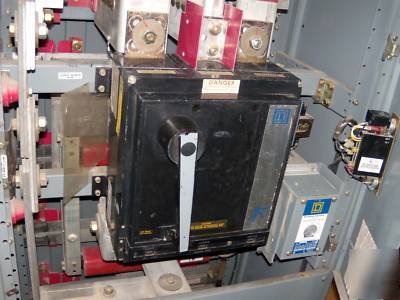

* Main Breaker 1200 amps, 3 PH, 600 VAC
- Main Breaker Cat. # PHF362000GZ
- High Inturrupt Circuit Breaker
- 39 of these circuits will support "F" & "K" style I-Line frames. These circuit breakers range from 15 to 250 amps. The panel will also accept the Q2 model of circuit breaker
- The other side also supports an additional 39 circuits, which will support "F", "K", "L", "M", & "N" style I-Line frames. These circuit breakers range from 15-1200 amps.
- Please keep in mind that the bigger frame circuit breakers take up more than 3 circuits each. The 3 pole FA or KA style will only take up 3 circuits each. LA models take up 5 circuits each, and MA models use 6 circuits each.
* Panel has a small amount of surface rust on its outside. We can sandblast & paint this unit using air spraying equipment, for an additional fee, if desired.

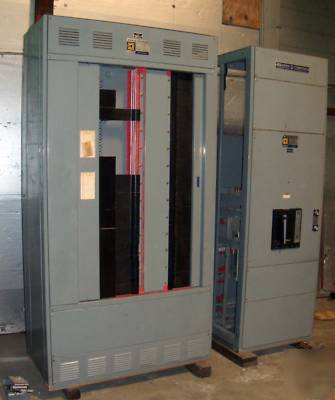

* Dimensions for Main cabinet 92" x 30" x 28"
* Dimensions for Feeder cabinet 92" x 48" x 25"
* Buss connectors are included to connect these Main and Feeder panels.
