Sorensen DCS50-40 programmable dc power supply, 50V 38A

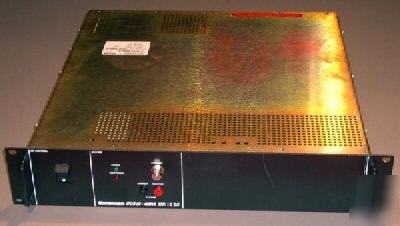

The front panel features a 10-turn current control knob with a locking shaft, along with a current monitor (100mv/Amp). The voltage (and current) can be monitored and controlled via the "programming, sense, and monitor connector, J3," located on the back of the unit. See product manual for details. These units were manufactured in a configuration without front panel meters and no front panel voltage control, as shown in the pictures.
We will include a power connector to interface with the input connector on the supply (the red connector on the rear of the unit).
The DCS Family of programmable power supplies incorporate current mode switching rates up to 100 kHz in high power density, low profile chassis. Utilizing unique packaging techniques, the DCS Family provides continuous full output power in any volt/amp combination within the rated output voltage and current limits.
Voltage: 200-250VAC single phase, or 190-250VAC three phase
Current draw with 2kW load: 14A RMS with 3 phase input, 20A RMS with single phase
2000 watts maximum, 0 watts minimum
Voltage internally set for a maximum compliance of 53V 1VDC
Current adjustable from 0 to 38 amps DC
Less than 1 ms recovery to 1% band for 30% step load changes from 70% to 100% or 100% to 70%
Less than 0.05% over 8 hours in voltage or current mode after 30 minute warmup period
* Switching Frequency: Nominal 65kHz (130kHz output ripple)
* Ripple Voltage: 200mV peak-to-peak, 20mV RMS, 20MHz limited
