Hp 4349A/4339A high resistance meter, 30-day warranty

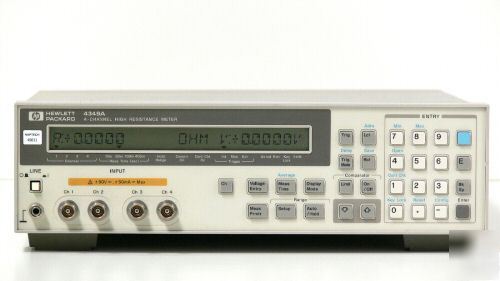

HP Agilent 4349A 4-Channel High Resistance Meter
The 4349A high resistance meter is a precise, reliable, high-speed test tool for making precision high resistance measurements. With 4 channels the HP 4349A instead of 2 channels like 4339A it enables simultaneous testing of 4 capacitors with different test voltages thus reducing the investment cost when compared to a single channel instrument. The 4349A's front end has a 1 kOhm input impedance that allows the instrument to reduce the capacitor's charge time and increase test throughput. The Contact Check function verifies that the signal path between the handler and the device under test is optimal for measurements
* Designed for capacitor measurements
* High speed measurement: 11ms
* Test voltage: External source required
* R range: 10 kohms to 1.0 x10 to the 15th ohms
* Input/output resistance: 1 kohm
* Display resolution: 3 / 4 / 5 digits
* Measurement time: 9.5 mS / 28 mS / 98 mS / 397 mS
* Test cable length: 2 m max

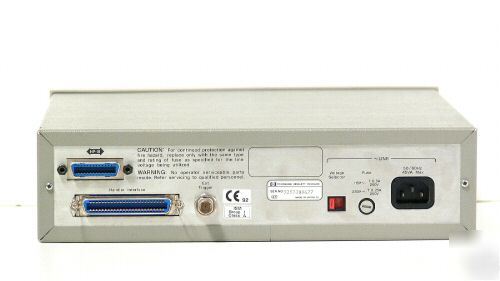

* HP-IB and handler interfaces
* 90-132/198-264 Vac; 47-66 Hz operation
* Size: 100 mm (3.94 in)H x 320 mm (12.6 in)W x 450 mm (17.72 in)D
Accessories included: US power cord only
More about the instrument: It was manufactured in 1992. Serial number: 3237J00677. As you can see in the pictures, it is in good condition with few signs of wear and tear. All photos on this page are of the actual item offered here.
Guaranteed to be clean and fully operational, with 14-day right of return
