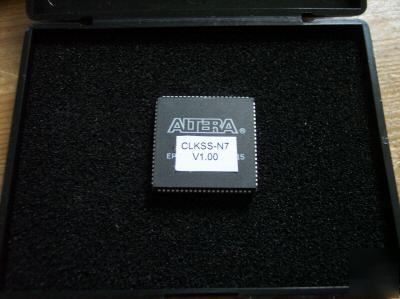

Clock i.c : use with nixie tubes, 7SEGMENT , TIL311
This device enables you to build a clock using a handful of components and your own choice of display.
The device has a 7 segment display driver built in. It can also be used to drive Nixie displays using just a few cheap transistors and resistors. Additionally, the device has a binary output, so it can be used as part of a larger timer or alarm system.
Single 32768Hz input reference source
Switchable Between the 12 and 24Hr clock formats (single pin setting)
The device can Drive 7 Segment Displays or Nixie Tubes (single pin setting)
Binary output (always present)
Simple clock setting arrangement
I can email a full data sheet for the device (in .PDF form) or it can be downloaded here :-
