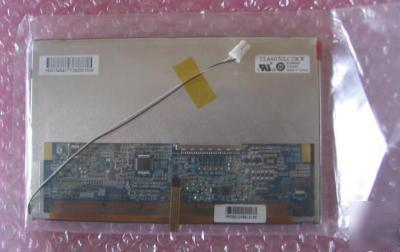

7 inch tft lcd,1024X600, cpt, CLAA070NA01CT
ITEM SPECIFICATION for CLAA070NA01CT
Display Area (mm) 153.6(H) 90(V)
Number of Pixels 1024(H) 3(RGB) 600(V)
Pixel Pitch (mm) 0.15(H) 0.15(V)
Brightness(cd/m2) 200 nit(min)/250nit(typ)
Viewing Angle(BL on,CR 10) 140 degree(H) 110degree(V)
Outline Dimension(in mm) 165(W) 102(H) 6(D)
Surface Treament Anti-Glare Hardness:3H
Touch Panel Type 4 wire resistive
