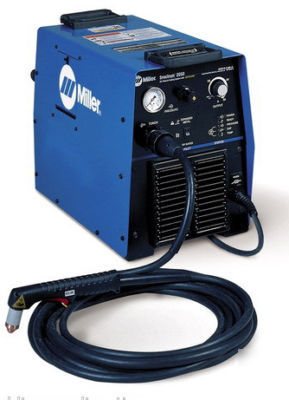

Miller spectrum® 2050 plasma cutting and gouging
Miller Plasma Cutting and Gouging
H: 17 in (432 mm) W: 12-1/2 in (318 mm) D: 20-3/4 in (527 mm) Net Wt. 86 lbs
Input voltage from 208 to 575 V, single- or three-phase, 50 or 60 Hz.
One hand-held torch with 25 ft (7.6 m) ,
20 ft (6.1 m) work cable with clamp
Rated Output 55 A at 110 VDC, 60% duty cycle, 3-Phase 55 A at 110 VDC, 50% duty cycle,
Cutting Performance - Mild Steel Cutting Capability
1/2 in Mild steel (12.7 mm) at 27 IPM, - 7/8 in Mild steel (22.2 mm) at 10 IPM
