8" x 58" giddings & lewis boring & centering machine

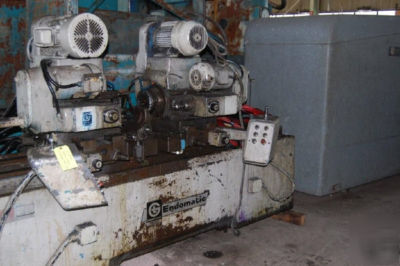

8" x 58" GIDDINGS & LEWIS "ENDOMATIC" DOUBLE-END
MILLING DRILLING CHAMFERING BORING & CENTERING
New 1973, Serial No FM1088, Model MC, Series
Centering Heads: (2) 3 HP (each)
Milling Heads: (2) 10 HP (each)
(1) Self Centering Hydraulic Clamping Vise
Hardened & Ground Milling Head Slideways
Work Diameter Capacity, Minimum........ .5"
Work Diameter Capacity, Maximum........ 8"
Maximum Distance Between Spindle Faces. 58"
Drilling Quill Stroke, Maximum......... 3"
Milling Feed Stroke, Maximum........... 9.75"
(17) Drilling Spindle Speeds, Range.... 314 to 1105 RPM
(18) Milling Spindle Speeds, Range..... 26 to 236 RPM
Milling Spindle Feeds, Range........... 0 to 150 IPM
Drilling Spindle Feeds, Range.......... .75 to 25 IPM
Milling Head Rapid Traverse............ 150 IPM
Drilling Head Rapid Traverse........... 100 IPM
(2) Milling Spindle Motors, HP......... 10 HP
(2) Drilling Spindle Motors, HP........ 3 HP
PRICE: F.O.B. OUR WAREHOUSE........... $4,950.00
