0-250 psia atmospheric pressure transducer stainless

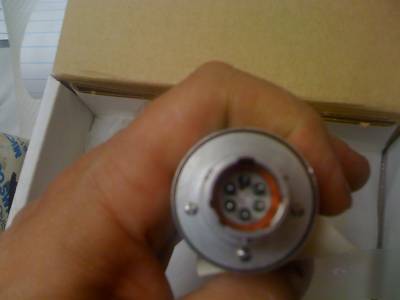

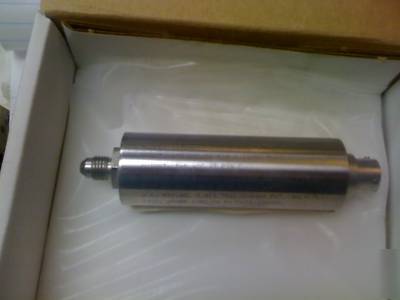

0 to 250 PSIA, 28VDC Input, 0 to 9 VDC Output, Stainless Steel Atmospheric Pressure Transducers, AN/JIC -4 pressure port, 6 pin electrical connector
TRANSDUCER PRESSURE 0 TO 250 PSIA
MODEL: 1332AG7 S/N: 15645 DATE: 31/87
INPUT +28 VDC TO PIN A (21MA MAX)
COMMON: PIN B CASE GROUND: PIN E
TEST POINT: PIN F (PIN D NOT USED)
US PAT NO 3,619,742 CANADA PAT. (BREVETE) 1973
ROSEMOUNT MINNEAPOLIS, MINNESOTA
