Thornton 770MAX conductivity/resistivity smart sensor
Thornton 770MAX Conductivity/Resistivity Smart Sensor
Thornton 770MAX Conductivity/Resistivity Smart Sensor

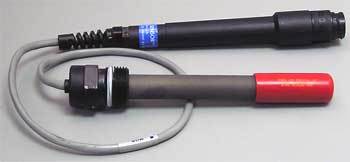

Thornton 770 MAX Conductivity Sensor
Thornton conductivity sensors are industry standards for determining water purity and
solution concentration. Smart conductivity sensors are a key part of the 770MAX Multiparameter
Analyzer/Transmitter measuring system. Each sensor includes data stored in its nonvolatile
memory which is communicated to the instrument as soon as it is connected. Data includes
measurement identification, cell and temperature calibration constants, date of last calibration,
serial number, etc., to provide especially fast, simple and reliable startup and documentation.
In addition, all wiring is conveniently handled through connectors.
* Insertion Length X : 5.19 in (132 mm)
* Cable Length: 1.5 ft (0.5m)
* Fitting Material: Teflon/SS
* Electrode Material: Titanium
* Max Pressure/Temp: 250 Psig (17 bar) at 200 F (93 C)
