New tektronix P6150 9 ghz passive probe 10X, 50 ohm

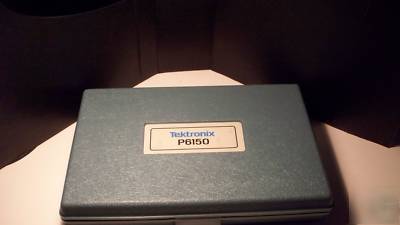

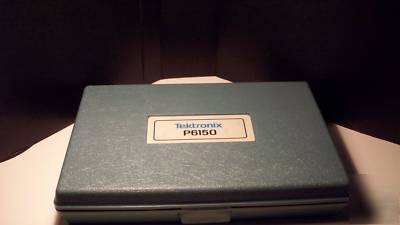

IT IS NEW UNUSED WITH CASE NO PAPERWORK
Low Impedance Zo TDR Passive Probes
* Low Capacitive Loading to Extremely High Frequencies

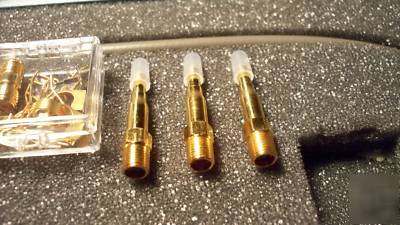

* Interchangeable Attenuator Tip Assemblies: 1X, 10X
* High-speed Device Characterization in Microwave Communication, Signal Processing and Logic Applications
* Propagation Delays for ECL, GaAs and Other Logic Circuitry and Devices
* Circuit Board Impedance Testing (TDR)
* High-speed Sampling Systems

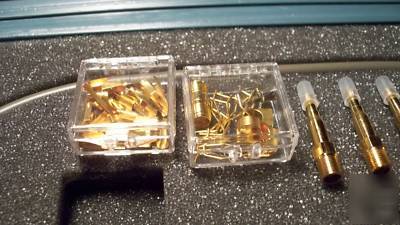

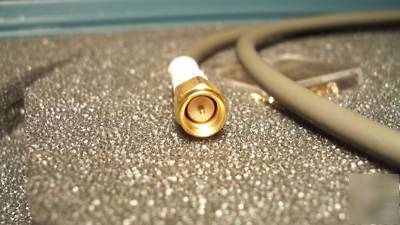

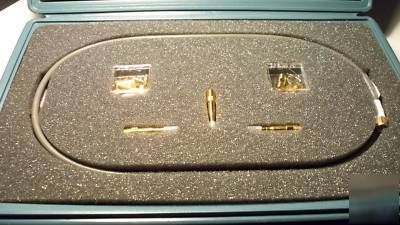

Tektronix P6150 is a 9 GHz bandwidth, 10X attenuation, low impedance probe designed for use with the SD2X family of Sampling/TDR plug-ins. The probe consists of interchangeable, screw-in attenuator tip assemblies (1X and 10X) and an SMA-to-SMA probe cable. An assortment of circuit and grounding attachments is included to optimize attachment to the device under test while maintaining high signal integrity.
* Attenuation - 10X: 2%, 1X: 2%.
* Rise Time - <38.8 ps, 170 ps.
* Loading Input R/C - 500 /<0.15 pF, 50 /N/A.
* Propagation Delay - 4.40 ns 0.1 ns, 4.40 ns 0.1 ns.
