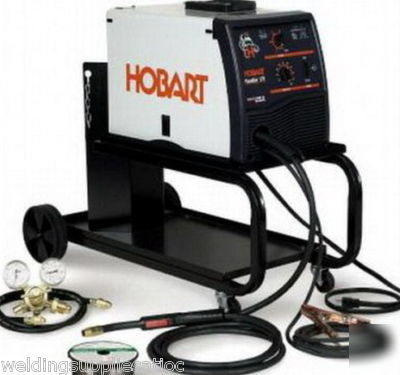

Hobart handler 140 mig welder with cart 500505
HOBART HANDLER 140 MIG WELDER WITH CART 500505
* Comfortable 10 ft. H10 MIG welding gun
* 10 ft. work lead with clamp
* Extra .030 in. (0.8mm) contact tips
* 1 lb. spool of .030 in. (0.8mm) self-shielded flux cored welding wire
Go to http:// /products/handler140.html for full spec sheets.
You can call me at (***)-854-7380 5:00AM-7:00PM PT, 7 DAYS A WEEK.
*selling price may differ by retailer or region
The Handler 140 operates off 115 volt standard household current for maximum versatility. Comes ready to weld with or without shielding gas, no additional kit required. With an amperage output range of 25 - 140 it easily handles a broad selection of solid mild steel or stainless, flux cored and aluminum wires.
* Welds 24 gauge up to 1/4 inch in a single pass
* Built-in contactor eases use and is an excellent safety feature which makes wire electrically "cold" when not welding.
* Four output voltage settings with wire feed tracking provide quick and easy adjustment for different materials and thickness.
* Separate "purge" setting to purge gas line and set flow rate without wasting wire
* Dual groove drive rolls make it easy to switch between .023/.025 in. (0.6mm) and .030 - .035 in. (0.8 - 0.9 mm) wire
Accessories NOT INCLUDED-AVAILABLE IN
* Running Gear/Cylinder Rack #770 187: Heavy-duty construction. For gas cylinders no larger than 7 in (178 mm) diameter, maximum weight 100 lb (45 kg).
* Small Running Gear/Cylinder Rack #194 776: For gas cylinders no larger than 7in/178mm diameter, (max weight 75lbs/34kg)
* H10 Replacement MIG Gun #195 957: For .030 - .035 in. (0.8 - 0.9 mm) wire. Includes 10 ft. cable.
* Protective Cover #195 186 Weatherproof nylon resists stains and mildew, and protects the finish of your welder.
087299 .023/025 CONTACT TIPS PKG OF 10
000067 .030 CONTACT TIPS PKG OF 10
000068 .035 CONTACT TIPS PKG OF 10
169716 TIP ADAPTER PKG OF 2
194010 .023/.025 LINER 194011 .030/.035 LINER
* 202926 .030/.035/.045 DR ROLL
* CS15 FLUX CORE WIRE .030 X 10#
* NR211 FLUX CORE WIRE .035X10#
* ER70S6 .023 X 11# SPOOL ER70S6 .030 X 11# SPOOL
Rated Output at 20% Duty Cycle
Amps Input at Rated Output, 120V/KVA/KW
115V, 60 Hz with gas valve, regulator and hose
20 (15 CSA Rating) / 2.9 (2.2 CSA Rating) / 2.5 (1.77 CSA Rating)
