New static and dynamic pressure board microchip 40VIN
This product is not FAA-certified and should not be used under IFR conditions or in FAA-Certified aircraft.
.....When Altitude and Airspeed matter!!
(1) 3FT cable with 4 pin connector / other end bare
-upto 40 Vin DC with switching power supply!!
-Serial UART interface at 10 HZ output

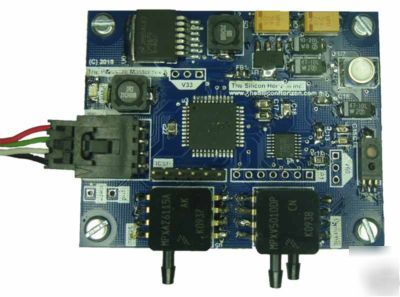

We have finished the pressure board for the killer IMU, it is also a standalone product.
Tons of great features that you wont find in other pressure boards, we didnt cut any corners on this one!!
-Airspeed with humidity compensation
-Differential pressure from 0 to 10 KPa
-Static pressure from 1-115 Kpa / Temp from -45 to _85 deg C
-UAV's, weather stations, other pressure apps
-I2C or UART interface on lockable 4 pin molex connector
-1 x Freescale MPXAZ6115A pressure sensors 15-115 Kpa
-1 x Freescale differential pressure sensor 0-10 KPa
-1 x Intersema MS5540C pressure sensor 1-100Kpa
-Honeywell humidity sensor with condensation protection
-tube ports for the freescale sensors allow pitot and static tubes
-switching power supply - upto 40 Vin
-low noise <1% VREG on ADC and sensors
-extra ADC lines and other functions available
-Temp stability / compensation
The Pressure Master board will allow you to accurately measure altitude upto 100K feet, and differential pressures for airspeed (with humidity compensation) from 0-10 KPa.
With extra pins, a switching power supply, and a low noise VREG-other sensors can be added to the board easily and use its power supply at 3.3 or 6Vdc.
Firmware includes sourcecode for easy modification and highly accurate full floating point equations utilizing all of the above sensors.
