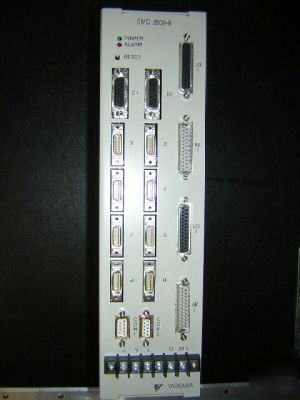

Yaskawa smc 2000-8 motion controller 8 axis
YOU ARE PURCHASING ONE YASKAWA 8 AXIS MOTION CONTROLLER. MODEL SMC-2000-8 WITH USERS GUIDE. THIS UNIT RETAILS FOR $4,131.75 AT GALCO. (G2)
The SMC-2000 single/multi-axis motion controller is packaged for stand-alone operation. Features include: coordinated motion profiling, programmable and dedicated digital 24VDC I/O, analog inputs, and non-volatile memory for stand-alone operation. Two RS-232/RS-422 communication ports are available for interfacing with a PC, PLC and Operator Interface.
Superior performance capabilities include:
8 MHz Encoder Input Frequency
16-bit DAC Output Resolution
Multi-tasking Up to 4 Programs
Position Accuracy of +/-1 Quadrature Count
This powerful controller provides several modes of motion control, including point-to-point positioning and linear and circular interpolation, electronic line shafting and cam profiling. The SMC-2000's polarized connectors and pre-wired cables allow simple plug and play connection to any Yaskawa servo. In addition to its full range of powerful features, programming is made easy with the use of "YTerm-2000", Yaskawa's Windows -based software for programming, set-up and troubleshooting.
Auto-tuning and Graphical Manual Tuning
Programming tools include 147 simple instructions with up to 254 user-defined variables. Position, torque, velocity and other system variables can be used and changed dynamically within the program. QUESTIONS MAY BE EMAILED OR PHONE (***)-200-0156.
