New port nrc 07D10AL.2 broadband metallic mirror 0.75 in

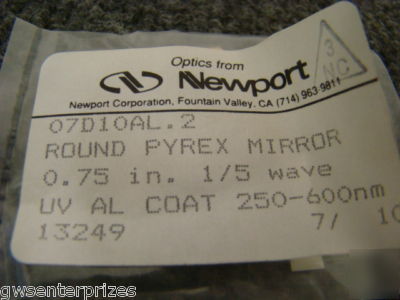

Newport NRC 07D10AL.2 Broadband Metallic Mirror 0.75 in 1/5 wave. UV AL Coat 250-600nm.
The 07D10AL.2 Broadband Metallic Mirror is an excellent general purpose, broadband reflectors. This 3/4 inch (19.05 mm) diameter mirror is made from a 4.57 mm thick Pyrex substrate. Pyrex has low thermal expansion and is an excellent substrate for most applications. The AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with average reflectivity greater than 90% from 250 600 nm. The aluminum film is overcoated with UV transparent magnesium fluoride to prevent oxidation of the metal. This mirror has a /5 surface flatness and a 20-10 surface quality.
