> 20" swg 60" cc acer 2060GH dynamic series engine lathe,
20" swg 60" cc acer 2060GH dynamic series engine lathe,
20" Swg 60" cc Acer 2060GH Dynamic Series ENGINE LATHE,

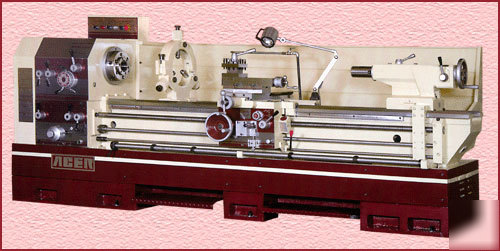

20" Swing 60" Centers Acer 2060GH Dynamic Series ENGINE LATHE, 10 HP, D1-8 Camlock w/3-1/16" Spindle
Swing Over Gap (gap type only): 29.5"
Spindle Nose: D1-8 or ASA-A1-8
Spindle Bore Diameter: 3-1/16"
Spindle Speeds: 30-1500 RPM (16 steps, 2 spd motor)
Metric Pitch Threads: 0.5 - 7mm/pitch (21 kinds)
Inch Pitch Threads: 4-56 TPI (40 kinds)
Module Pitch Threads (optional): 0.25-3.5 MP (14 kinds)
Diametral Pitch Threads (optional): 8-112 DP (18 kinds)
Range of Longitudinal Feeds: 0.0015" - 0.0216"/rev. 0.04 -.60mm/rev. (40 kinds)
Range of Cross Feeds: 0.0015"-0.0216"/rev. 0.04 - .60mm/rev. (40 kinds)
Main Drive Motor: 10 hp 220 or 440 Volt 3 Phase
Floor Dimensions: 115.35" x 57.48 x 56.69"
Packing Dimensions: 122.04" x 44.50" x 82.68"
D1-8 spindle nose with 20 mm wide gears.
16 steps, 2 speed motor from 30 to 1,500 RPM.
Gear train is designed with a safety pin to protect from damage.
Drip proof 10 HP spindle motor.
Mechanical foot brake is easy to adjust and maintain.
With a 1:1 ratio for cross and longitudinal feed rate.
Saddle locking screw for heavy cutting.
Protective overload cone shape device.
One-shot lube for apron and saddle.
Machine weighs in at an impressive 5,940 lbs.
