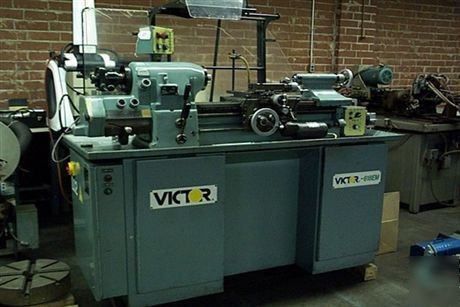

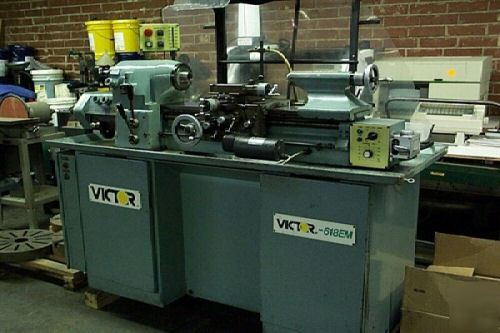

Victor precision toolroom lathe model 618EM hlv
Victor #618EM, 11"x 18", inch/metric, 130-3000 RPM (vari.) collets, 1993
Spindle Speed Range (Variable)- 130 to 3000 RPM

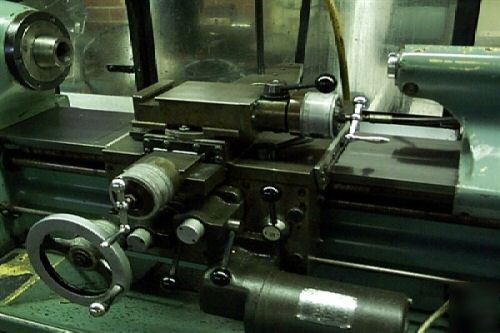

Carriage Power Feed Range- 5/16" to 7"
Cross Slide Power Feed Range- 3/16" to 4"
Quick Acting Compound Slide Travel-0.1"
Tailstock Spindle Diameter- 1.358"
Tailstock Spindle Taper- #2 MT
Tailstock Spindle Travel-3-3/4"
- Metric (36)- 0.275 to 2.7 mm

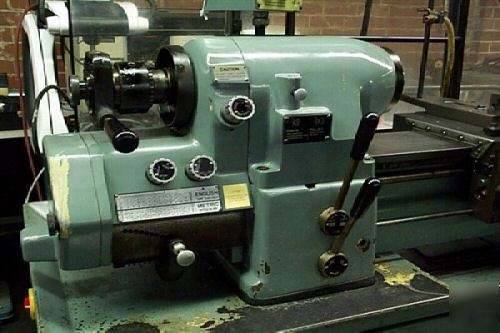

Variable Speed Spindle Controls

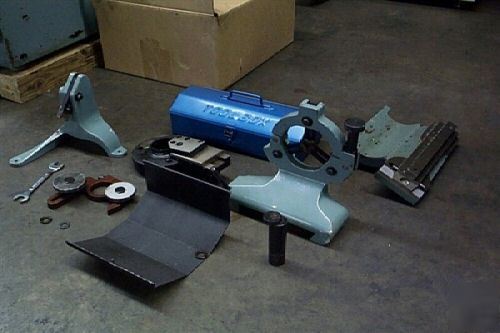

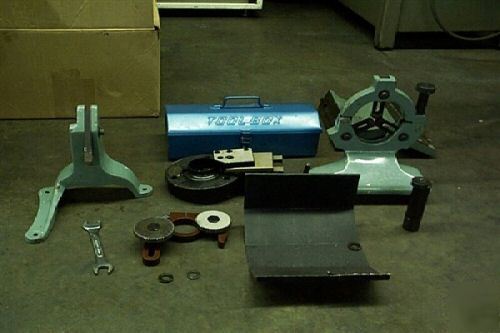

Vertical Cutoff Slide Attachment
Collet Racks w/ Approx. (28) 5C Collets
Motor and Controls- 2-Speed- 1/.5HP 3/60/440 Volt
Floor Space: 70" L-R x 35" F-B x 60" High
