Pelco CE16-bk desktop console 16 rack 16RU 28 std

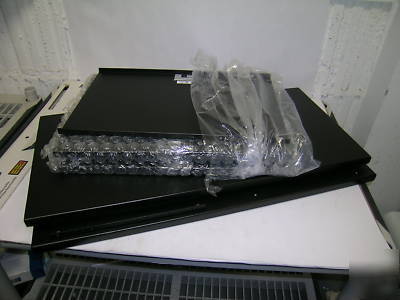

CONDITION: OPEN BOX-UNIT LOOKS NEW AND COMPLETE
"Building Block" Modular Design Permits Economical Expansion
Choose From Standard (14-Inch/35.56 cm) or Extended (24-Inch/60.96 cm) Depth

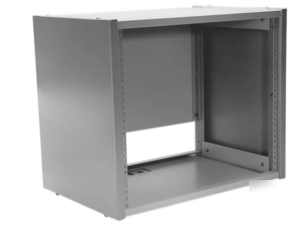

Pelco's CE Series desktop consoles and modular components provide a professional, integrated appearance for controls, video switchers, monitors, and video signal equipment. Economical "building block" modular design allows you to custom-design, expand, and upgrade the console to meet the exact requirements of your specific installation from the simplest to the most complex.
The three basic models are available in either a 7- inch (17.78 cm), 15.75-inch (40 cm) or 28-inch (71.12 cm) height. All consoles are 19 inches wide and are available in either a standard 14-inch (35.56 cm) depth or extended 24-inch (60.96 cm) depth.
Easy-to-assemble modular components permit maximum flexibility and versatility in designing a configuration to house video control equipment at your fingertips. As an added feature, strapping plates are included with the CE4, CE9 and CE16 series which allow you to vertically stack two units.
Accessories include extender kits, wedge kits and blank panels for standard and extended depth models. The extender kits (CEX/CEXD) horizontally join one or more consoles in series and securely hold the consoles together to prevent shifting and misalignment. Wedge kits (CE45/CE90) join two separate consoles positioned at 45/90 degree angles to one another. Inexpensive blank panels (BP) are available in 1, 2, 4, 5, 10 and 12 rack units to cover unused spaces and give the unit a finished appearance. The panels can be easily removed at a later date to accommodate additional equipment.
All models are available in either a black or two-tone gray finish.
CE4-BK | Desktop console, 4 rack unit height (7 inches/17.78 cm), standard depth (14 inches/35.56 cm), black
CE4-GY | Same as CE4-BK except two-tone gray
CE4D-BK | Desktop console, 4 rack unit height (7 inches/17.78 cm), extended depth (24 inches/60.96 cm), black
CE4D-GY | Same as CE4D-BK except two-tone gray
CE9-BK | Desktop console, 9 rack unit height (15.75 inches/40 cm), standard depth (14 inches/35.56 cm), black
CE9-GY | Same as CE9-BK except two-tone gray
CE9D-BK | Desktop console, 9 rack unit height (15.75 inches/40 cm), extended depth (24 inches/60.96 cm), black
CE9D-GY | Same as CE9D-BK except two-tone gray
CE16-BK | Desktop console, 16 rack unit height (28 inches/71.12 cm), standard depth (14 inches/35.56 cm), black
CE16-GY | Same as CE16-BK except two-tone gray
CE16D-BK | Desktop console, 16 rack unit height (28 inches/71.12 cm), extended depth (24 inches/60.96 cm), black
CE16D-GY | Same as CE16D-BK except two-tone gray
