Hp agilent E3645A dc power supply 0-35V,2.2A 0-60V,1.3A

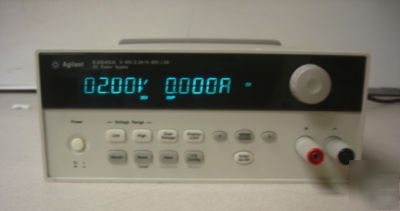

A HP Agilent E3645A DC Power Supply 0-35V,2.2A 0-60V,1.3A
Output Ratings (@ 0 C to 40 C)
* Range 1: 0 to 35 V / 2.2 A
* Range 2: 0 to 60 V / 1.3 A
Programming Accuracy (@ 25 C 5 C), (% output + offset)
* Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
Ripple & Noise 20 Hz to 20 MHz
* Normal Mode Voltage: <8 mVpp / 1 mVrms
* Normal Mode Current: <4 mArms
* Common Mode Current: <1.5 uArms
Readback Accuracy (@ 25 C 5 C), (% output + offset)
* Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
* Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
Calibration service available.
