New ilsco 2IACL-1000 alum comp connector lug

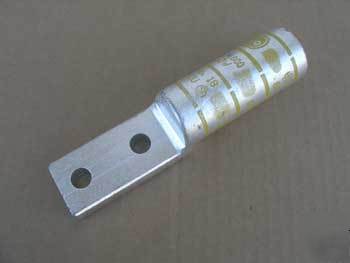

New Ilsco 2IACL-1000 Alum comp connector Lug New
Model/Part No: 2IACL-1000 Our Item ID: 9171
Ilsco 2IACL-1000 Alum comp connector. Ilsco 2IACL-1000 Alum comp connector instructions.
Ilsco 2IACL-1000 Alum comp connector Lug
Manufactured from high strength aluminum alloy and Electro-Tin Plated Chamfered barrel and prefilled with DE-OX. Color coded end caps inserted in barrel and ink marked with die number and number of crimps. Impact extruded, seamless barrel. 500 kcmil sizes and higher may be mounted side by side. Four OD sizes accommodate a wire range from #4 to 600kcmil. Dual Rated for Copper and Aluminum Conductor. UL 486B Listed for 600 Volts. If proper high voltage spacings and insulation techniques are used, may be used for high voltage applications up to 35KV. Listed with Ilsco tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, IDT-12, IDT-12H. Ilsco connectors are UL Listed with ILSCO or other Manufacturers' tools. Refer to Tool and Die Charts under Reference Tab. UL File E6207
Item ID:2IACL-1000 Conductor Size:1000 kcmil Bolt/Stud Size:1/2 Mounting Hole Spacing:1-3/4 Barrel Depth:3.1875 Tang Length:3.2500 Tang Width:1.6094 Overall Length:7.2500 Die Index Number:18 Standard Package Quantity:1
Item Tested?: Not Applicable (N/A)Physical Condition: Excellent; Working Condition: Fully Functional1.5||1
